Downhole Drilling Rig For Mining Blasting Hole Integrated Dth Mounted Diesel Open Use Dth Drilling Rig

Downhole Drilling Rig For Mining Blasting Hole Integrated DTH Mounted Diesel Open Use Drilling Rig

Downhole Drilling Rig For Mining Blasting Hole Integrated Dth Mounted Diesel Open Use Dth Drilling Rig

Application

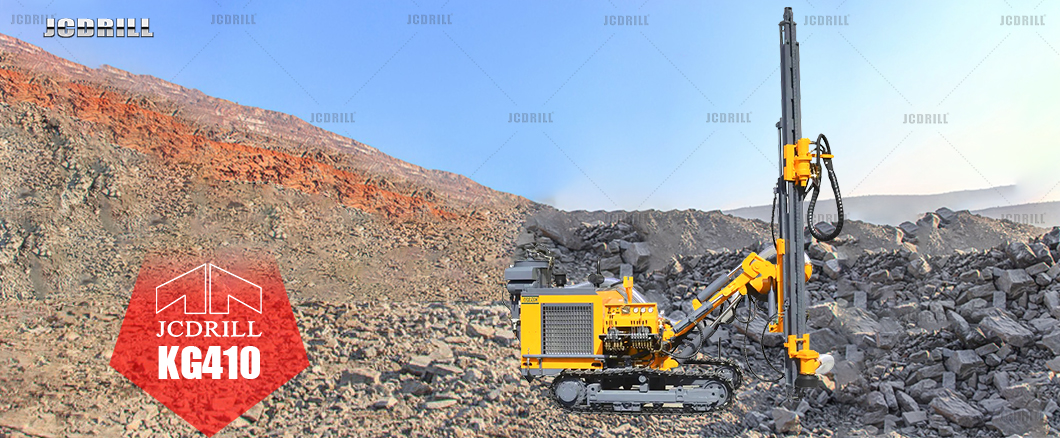

The KG410/KG410H down the hole drill rig mine drilling rig for open use is an improved device in compliance with national regulations in diesel-engine emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity, the expanded pith and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position.The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its
level of intensity and rigidity, and the additional ring makes handling and lifting convenient.

The KG410H down the hole mine drilling rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Characteristics

DTH Mining Drilling Rig

1. Hydraulic driven, smooth transmission, low noise, compacted control panel, easy to operate, labor-saving, safe and reliable.

2. Crawler chassis mounted, convenient and fast to move and position.

3. Main arm can move up and down, drilling tower slides on sliding frame, stable, safe and reliable.

4. Sliding frame can swing back and forth on the main arm seat, achieving drilling in angles, Besides, a meter is equipped on the sliding frame, showing drilling angles conveniently.

5. Moving of power head is driven by cylinder chain multi speed system with dual chain balance structure.

6. Multifunctional power head has features of sliding clearance compensation and adjustment compensation and stepless speed adjustment large torque slow speed

7. Power head has wide speed range, which can meet the requirement of various formation and different drilling process.

Downhole Drilling Rig For Mining Blasting Hole Integrated Dth Mounted Diesel Open Use Dth Drilling Rig

Specifications KG410/KG410H crawler DTH mine drilling rig for stone quarry

Model	KG410	KG410H
Weight	4700kg	4700kg
Size of drill machine	6000X2100X2000mm	6000x2350x2000mm
Rock rigidity	f=8-12
Diameter of hole	Φ90-115mm
Depth of economical drilling	25m
Rotation speed	0-120r/min
Rotation torque	1800N·m
Lift power	40000N
Feed way	oil cylinder-chain
Feed distance	3980mm
Walk speed	0-2.5Km/h
Grade ability	30°
Ground clearance	280mm
Pitch angle of beam	Blow 135°,up50°, total 185°
Swing angle of beam	Left100°,right45°,total 145°
Pitch angle of drill arm	Blow 50°,up25°, total 75°
Swing angle of drill arm	Left44°,right45°,total 89°
Compensation length of beam	900mm
Power	YC4DKC4G2-80 (58KW/2200r/min)
Drill pipe	Φ64x3000mm / 76X3000mm
Air consumption	10-17m³/min
Max height of horizontal hole	2840mm
Min height of horizontal hole	350mm
Min height of horizontal hole	350mm
