Factory selling downhole drilling rig for mining hole blasting crawler mine drilling rig

Application

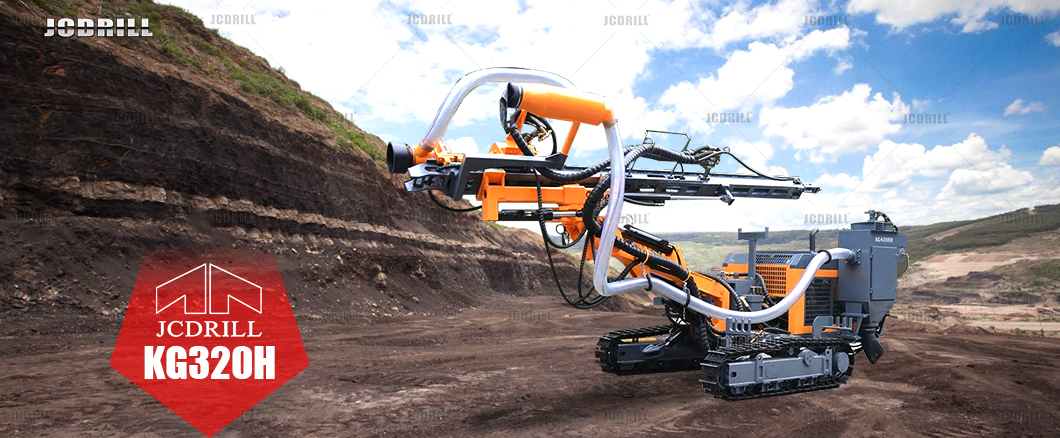

The KG320/KG320H Kaishan crawler DTH mine drilling rig for stone quarry is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai engine (China III), the drill rig meets national standards for emissions and environment. The tramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is improved,thereby proving increased system flow and rotary speed. The hydraulic cylinder has been optimized, thus making it more reliable.The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient.The KG320H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Characteristics

DTH Mining Drilling Rig

1.The whole vehicle is optimized by computer, with compact structure and beautiful appearance.
2.According to the functional arrangement, the control valve is installed, the handle is centralized, and the operation is convenient.
3.The hydraulic system of the crawler type DTH hammer drill adopts centralized oil return filtration, and the system works stably and reliably.
4.Special structure design can realize lateral horizontal hole drilling operation.
5.Humanized design concept, to ensure the safety of drilling rig operators and night drilling rig displacement, operation safety.
6.The special manufacturing technology of key parts and high quality imported seals ensure the reliability and durability of the drilling rig.

Model	KG320H	KG320H
Weight	4500kg	4700kg
Size of drill machine	5750X2100X2650mm	5750x2350x2650mm
Rock rigidity	f=6-20
Diameter of hole	Φ80-105mm
Depth of economical drilling	25m
Rotation speed	0-140r/min
Rotation torque	1250N·m
Lift power	20000N
Feed way	oil cylinder-chain
Feed distance	3820mm
Walk speed	0-2.2Km/h
Grade ability	30°
Ground clearance	465mm
Pitch angle of beam	Blow 135°,up50°, total 185°
Swing angle of beam	Left100°,right45°,total 145°
Pitch angle of drill arm	Blow 50°,up25°, total 75°
Swing angle of drill arm	Left44°,right45°,total 89°
Compensation length of beam	900mm
Power	YCD4R23T8-80 (59KW/2400r/min)
Drill pipe	Φ64x3000mm
Air consumption	7-15m³/min
Max height of horizontal hole	2750mm
Min height of horizontal hole	750mm
