Product Description:

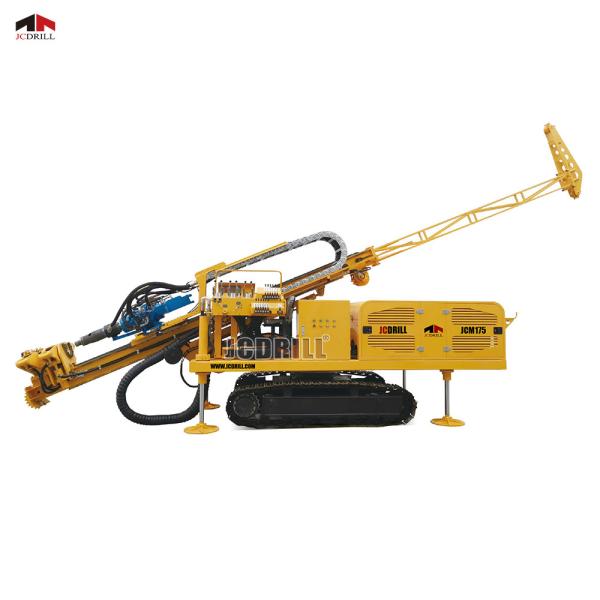

JCM175 Crawler Hydraulic Anchor Drilling Rig, an advanced solution for contractors and engineers who demand precision, stability, and raw drilling power. With a rated power of 55+55+18.5+2.2kW, this multifunctional anchor drill rig stands as a cornerstone in rock anchoring, soil nailing, and foundation reinforcement. Designed for high-torque drilling with both low and high gear options (up to 158 Nm), it’s optimized for varying geological conditions, making it a true engineering drilling rig for diverse terrains.

The central rotary turntable allows seamless multi-position drilling, enhancing site efficiency while keeping the operation compact and mobile. Ideal for tasks requiring rotary anchor drilling, hydraulic impact work (750Nm), and high percussion frequency (up to 1400/min), the JCM175 delivers the speed and stability your project needs—on demand.

Parameter:

Features:​

Compact Yet Powerful Design
Despite its size, the JCM175 packs a punch. It’s small enough for confined spaces but strong enough for demanding jobs.

Multi-Function Capability
Whether you're drilling for rock anchors, soil nails, or micro piles, this machine adapts easily.

Hydraulic Power and Precision
The hydraulic rotary drill rig gives you smooth, controlled movements and consistent torque, reducing operator fatigue and improving results.

Enhanced Mobility with Caterpillar Tracks
The crawler system allows for smooth travel across muddy, rocky, or uneven terrain, no need for extra transport gear.

Central Rotary Table for Multi-Position Drilling
This makes it ideal for complex engineering projects that require frequent position adjustments.

High Torque and Speed Options
It offers a high-speed range of up to 158 r/min and a torque range of up to 13,600 Nm. Impressive, right?

Hydraulic Cylinder + Chain Feed Mechanism
This combo boosts drilling stability and stroke control.

Double-Speed Drive
Switch between torque and speed based on the job site requirement — flexibility at its finest.

Smart Clamp Range Design
Clamp tubes from 60mm to 219mm with a maximum pass-through diameter of 260mm.

Applications:

Geotechnical Engineering Projects
From subway foundations to slope stabilization, the JCM175 thrives in the most demanding conditions.

Rock and Soil Anchoring
Drill deep into any surface with precision. Ground anchors are installed faster and with better control.

Root Piles and Micro Piles
Perfect for low-height and narrow construction areas where heavy rigs can't fit.

Retaining Wall Stabilization
Keep hillsides and roadways in check with firm and stable anchor installations.

FAQs:

Q1: What types of projects is the JCM175 suitable for?
A1: Ideal for slope stabilization, foundation anchoring, root piles, and micro-pile drilling across geological engineering, civil infrastructure, and mining support.

Q2: What is the maximum drilling diameter it can handle?
A2: The rig supports a maximum passing diameter of 260mm and a clamp range of 60–219mm.

Q3: Is the rig suitable for uneven or steep terrain?
A3: Yes, with a gradeability of 25° and a crawler-based chassis, it's built for demanding and rugged work sites.

Q4: What makes this rig stand out from others in the same category?
A4: Its central rotary turntable, high torque, and multispeed feed/retraction system make it one of the most versatile rigs on the market.

Q5: Can it be sourced wholesale?
A5: Yes, we offer wholesale anchor drilling rig options, ideal for resellers or large projects requiring multiple units.
