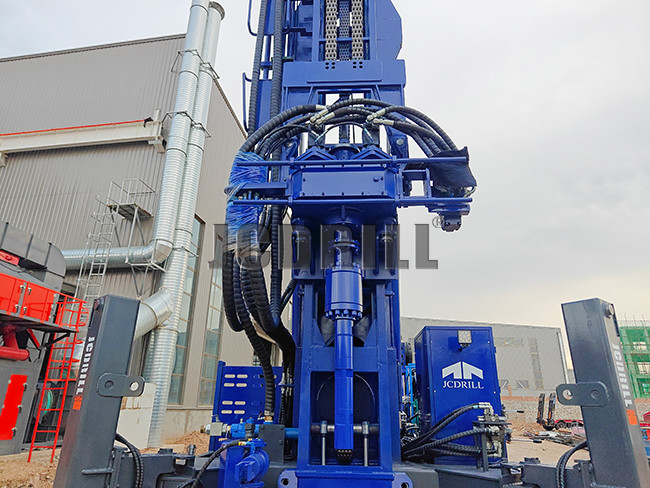

The CSD1300 is a high-performance, hydraulic-powered pneumatic drilling machine engineered for extreme depths, rugged formations, and maximum efficiency. Designed with precision and built to conquer, this truck-mounted deep water well drilling rig reaches depths up to 1300 meters with torque output up to 24,000 Nm, giving you unrivaled capability in DTH and mud rotary applications.

Featuring a Cummins 360HP diesel engine mounted on a robust 8x4 SINOTRUCK HOWO chassis, the CSD1300 is purpose-built for challenging terrains and long-haul durability. From remote villages to industrial construction zones, this rig transforms any site into a fully-equipped, self-contained drilling station – complete with generator setup, hydraulic-controlled tower, winches, and a BW1500/12 high-pressure mud pump. Whether you're drilling bore water wells, tackling hard weathered rock, or operating around the clock – this rig delivers.

Parameter:

Features:​

1300m Maximum Depth – Power through deep aquifers and demanding geological layers.

Hydraulic Drive System – Smooth, efficient, and fully controllable operations.

High Rotation Torque (24,000 Nm) – Penetrates the hardest rock with ease.

360HP Cummins Engine + 400HP HOWO Truck – Raw power meets road-ready reliability.

Wide Hole Diameter (105–900mm) – Adaptable for diverse well specifications.

Main + Tool Winches Included – 2.5T and 4T lifting for casings and tooling.

Built-in Generator Capability – Perfect for night work and field welding.

EU-2 Emissions Compliant – Eco-aware performance meets global standards.

Applications:

Agricultural & Irrigation Water Wells – Ensure reliable groundwater for farms and rural development.

Construction & Geotechnical Exploration – Pre-foundation and soil investigation.

Industrial Water Supply Projects – Large-scale borehole drilling with high flow demand.

Remote Area Drilling – Self-contained mobile rig for hard-to-reach or off-grid areas.

Municipal Water Infrastructure – High-capacity wells for town or city supply systems.

FAQs:

Q1: What geological formations can this rig handle?
A: The HydroForce CSD1300 is suitable for all formations, including hard rock, mudstone, and weathered layers via DTH and mud rotary drilling modes.

Q2: Can it be operated at night or in low-light conditions?
A: Yes! You can set up a generator for nighttime lighting or even field welding, making 24/7 operation possible.

Q3: Is the rig fully hydraulic?
A: Yes, the rig uses a hydraulic main drive, with hydraulic-controlled tower, landing legs, transfer case, and mud pump clutch system – making operation highly efficient.

Q4: What is the pulling force capacity?
A: The pulling capacity is 61 tons, while the push-down force is 6 tons, ideal for deep and complex well projects.

Q5: Is the rig easy to transport?
A: Mounted on a SINOTRUCK HOWO truck (8x4), it’s fully mobile and highway-ready, ensuring hassle-free deployment to any site.

Q6: How big is the rig?
A: It has a shipping dimension of 11600×2550×3650 mm and weighs 24 tons.

Beijing Jincheng Mining Technology Co., Ltd. (JCDRILL) is located in Beijing, China. For more than 20 years, we have specialized in the research, development, and production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories & drilling services. With our advanced technology, high-quality equipment, rigorous testing processes, and comprehensive service network, we consistently provide professional drilling solutions to our customers. These strengths have helped establish the “JCDRILL” brand as a trusted name in the market. Currently, JCDRILL products account for 50% of the domestic market and are exported to more than 40 countries. In November 2002, we were awarded ISO9001:2000 certification.

Our manufacturing facilities, covering an area of 9,625 square meters, specialize in the production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories. We employ more than 500 staff, including 26 experienced engineers from Ingersoll Rand and the former Xuanhua Mining Machinery Company. With our strong technological expertise and robust market service capabilities, we have developed both an efficient marketing system and an excellent service support system, earning the trust of customers worldwide.

Additionally, we serve as an authorized agent for mobile double-screw air compressors from Atlas Copco, Sullair, and Liutech. This allows us to offer drilling rig users high-quality, professional air compressor solutions along with reliable after-sales services.

At JCDRILL, we are committed to our strategic vision: “Survival by Quality, Development by Credit.” We strive to provide users with high-quality drilling solutions. Our after-sales service system follows a strict control framework based on ISO-9000 standards. This system ensures that technical data, problem-solving solutions, and preventive measures are provided for every maintenance project. All spare parts are sourced from new OEM products and come with installation instructions, packing lists, manufacturer documentation, qualification certificates, and warranty certificates.

We uphold the principle of “One Equipment, One Case, Endless Service”—our after-sales support begins from the moment an order is confirmed and lasts throughout the equipment’s entire operational life.
