Product Description:

The JRC500 Reverse Circulation (RC) Drilling Rig is a state-of-the-art, high-performance drilling solution developed for geological exploration, mineral resource assessment, water well drilling, and environmental studies. It incorporates advanced gas-lift reverse circulation drilling technology, ensuring minimal sample contamination while maintaining high drilling efficiency.

The rig is fully hydraulic, reducing manual labor while enhancing operational precision. With a powerful 132kW Cummins diesel engine, a maximum drilling depth of 500 meters, and 14000 N.M of rotation torque, the JRC500 is built for tough geological conditions. It can operate with DTH (Down-the-Hole) drilling or RC drilling, making it versatile for different drilling applications.

Additionally, the crawler-type chassis provides mobility across rough terrains, while the dust collection system minimizes environmental impact. This combination of power, precision, and efficiency makes the JRC500 an ideal choice for drilling projects that demand accuracy and reliability.

Parameter:

Features

• Advanced Reverse Circulation Technology

Utilizes dual-wall drill rods, allowing compressed air to transport cuttings through an inner tube, delivering high-quality, uncontaminated samples.

Produces dry rock chips, preventing the loss of valuable mineral samples compared to traditional wet sampling methods.

Ensures higher penetration rates and more accurate mineral deposit identification than conventional drilling techniques.

• High Performance and Efficiency

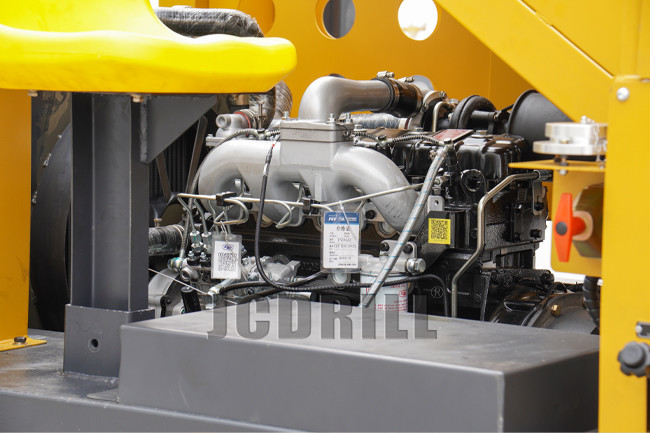

Equipped with a 132kW Cummins diesel engine, providing ample power for deep drilling.

Features a maximum hole depth of 500 meters and supports drilling diameters from 105mm to 450mm.

Rotation torque of 14000 N.M ensures strong and stable drilling power.

Hydraulic feed system with adjustable feed speeds (5-30m/min) and lifting speeds (5-18m/min) for optimized performance.

Dual drilling capability: Supports both DTH and RC drilling, making it adaptable to different projects.

• Fully Hydraulic System

Hydraulic rotation, feed, lifting, and walking systems significantly reduce manual labor.

The hydraulic rod handling system ensures smooth and efficient pipe changes.

Hydraulic walking system with a Korean-imported hydraulic motor allows stable movement on rough terrain.

• Environmental Protection and Safety

Integrated dust collection system ensures a clean work environment.

Reverse circulation reduces groundwater contamination risks.

Equipped with safety features such as a winch arm swing, rod box swing, and blow-down valve for added operational security.

• Strong Mobility and Stability

Built on a crawler-type chassis with the option to install rubber crawler shoes for enhanced adaptability on different terrains.

Walking speed of 2.5 km/h and 25° gradeability allow efficient transport and site movement.

Applications:

• Mineral Exploration

Provides precise, uncontaminated samples essential for mineral deposit assessment.

Offers better recovery rates compared to conventional drilling.

Commonly used for gold, iron ore, copper, and other mineral exploration projects.

• ​Water Well Drilling

Ideal for drilling deep water wells in rural and urban areas.

Efficient drilling method ensures faster completion and high water yield.

Supports large-diameter well drilling (up to 450mm).

• Geotechnical and Environmental Drilling

Used for soil investigation, geotechnical engineering, and groundwater monitoring.

Reverse circulation minimizes contaminant disturbance, making it suitable for environmental research.

• Energy Industry (Geothermal Drilling)

Applied in ground-source heat pump drilling to extract geothermal energy.

Reduces operational costs with efficient and deep drilling capabilities.

• Infrastructure and Construction Projects

Utilized in foundation drilling for large-scale infrastructure projects.

Supports deep and wide-diameter drilling for bridge and building foundations.

FAQs:

Q1: What is the maximum drilling depth of the JRC500 RC drilling rig?

A1: The JRC500 can drill up to 500 meters deep, making it suitable for deep exploration and water well drilling.

Q2: What type of power system does it use?

A2: The rig is powered by a 132kW Cummins diesel engine, ensuring reliable and strong drilling performance.

Q3: How does reverse circulation (RC) drilling work?

A3: RC drilling uses dual-wall drill pipes where compressed air forces drill cuttings up through an inner tube, keeping samples clean and uncontaminated. This method improves accuracy, penetration speed, and sample quality.

Q4: What is the maximum hole diameter the rig can drill?

A4: The rig can drill holes ranging from 105mm to 450mm in diameter.

Technical and Performance Questions

Q5: Can the rig operate in different terrains?

A5: Yes, the crawler chassis allows smooth movement over uneven ground, and rubber track options enable operation on delicate surfaces.

Q6: What type of drill pipes does it support?

A6: The JRC500 supports DTH drill pipes (89/102/114mm) and RC drill pipes (89/102/114mm), allowing flexibility in drilling operations.

Q7: What kind of air compressor is required?

A7: The rig requires an air compressor with a pressure range of 1.05–4.5 MPa and air consumption of 16–60 m³/min.

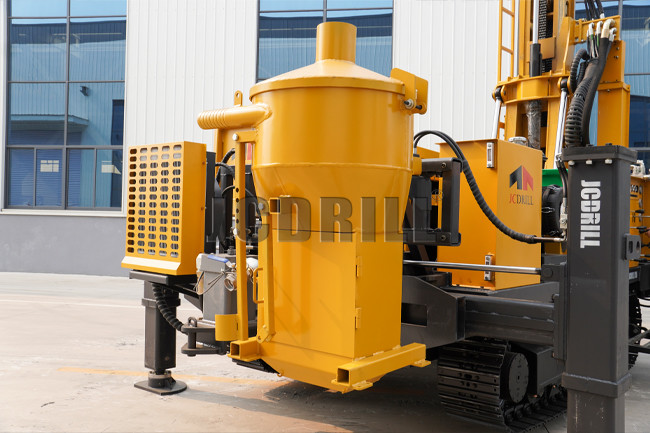

Q8: How does the dust collection system work?

A8: The system uses a cyclone separator to capture dust and drill cuttings, ensuring a clean and safe working environment.

Q9: Is the machine easy to transport?

A9: Yes, with compact dimensions (7300mm × 2200mm × 2650mm) and a net weight of 12 tons, the rig is designed for easy transport via truck or container.

Q10: What additional features improve efficiency?

A10: The rig includes a gearbox with two hydraulic motors, allowing precise torque control for deep drilling, as well as a hydraulic generator for added power supply.
