Hydraulic Crawler Water Well Borehole Drilling Machine for Sale

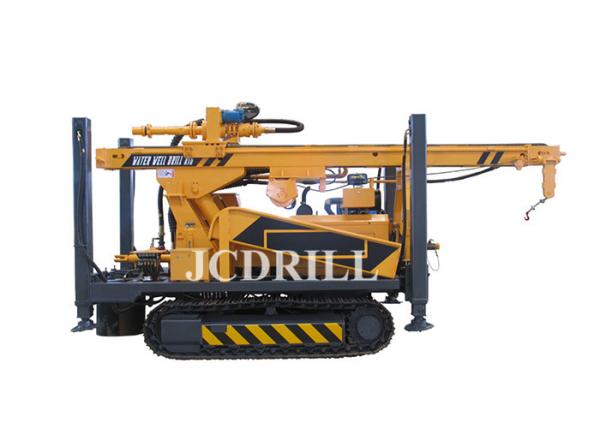

CWD300 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CWD300 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

Characteristics
1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a Yuchai engine,80KW drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-80 and 160rpm stepless adjustment and the rotary torque is 6900Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
12. Competitive in price, low cost of maintain.

Application


Specification

Packing Delivery

Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series,

in this system, technology date and problem solve solution and preventive measures will be provided in any

maintain project, all the spare parts will be used in new OEM products with installation instructions, packing

list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order

confirmation, last for the working life of the equipment

Beijing Jincheng Mining Technology Co., Ltd. (JCDRILL) is located in Beijing, China. For more than 20 years, we have specialized in the research, development, and production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories & drilling services. With our advanced technology, high-quality equipment, rigorous testing processes, and comprehensive service network, we consistently provide professional drilling solutions to our customers. These strengths have helped establish the “JCDRILL” brand as a trusted name in the market. Currently, JCDRILL products account for 50% of the domestic market and are exported to more than 40 countries. In November 2002, we were awarded ISO9001:2000 certification.

Our manufacturing facilities, covering an area of 9,625 square meters, specialize in the production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories. We employ more than 500 staff, including 26 experienced engineers from Ingersoll Rand and the former Xuanhua Mining Machinery Company. With our strong technological expertise and robust market service capabilities, we have developed both an efficient marketing system and an excellent service support system, earning the trust of customers worldwide.

Additionally, we serve as an authorized agent for mobile double-screw air compressors from Atlas Copco, Sullair, and Liutech. This allows us to offer drilling rig users high-quality, professional air compressor solutions along with reliable after-sales services.

At JCDRILL, we are committed to our strategic vision: “Survival by Quality, Development by Credit.” We strive to provide users with high-quality drilling solutions. Our after-sales service system follows a strict control framework based on ISO-9000 standards. This system ensures that technical data, problem-solving solutions, and preventive measures are provided for every maintenance project. All spare parts are sourced from new OEM products and come with installation instructions, packing lists, manufacturer documentation, qualification certificates, and warranty certificates.

We uphold the principle of “One Equipment, One Case, Endless Service”—our after-sales support begins from the moment an order is confirmed and lasts throughout the equipment’s entire operational life.
