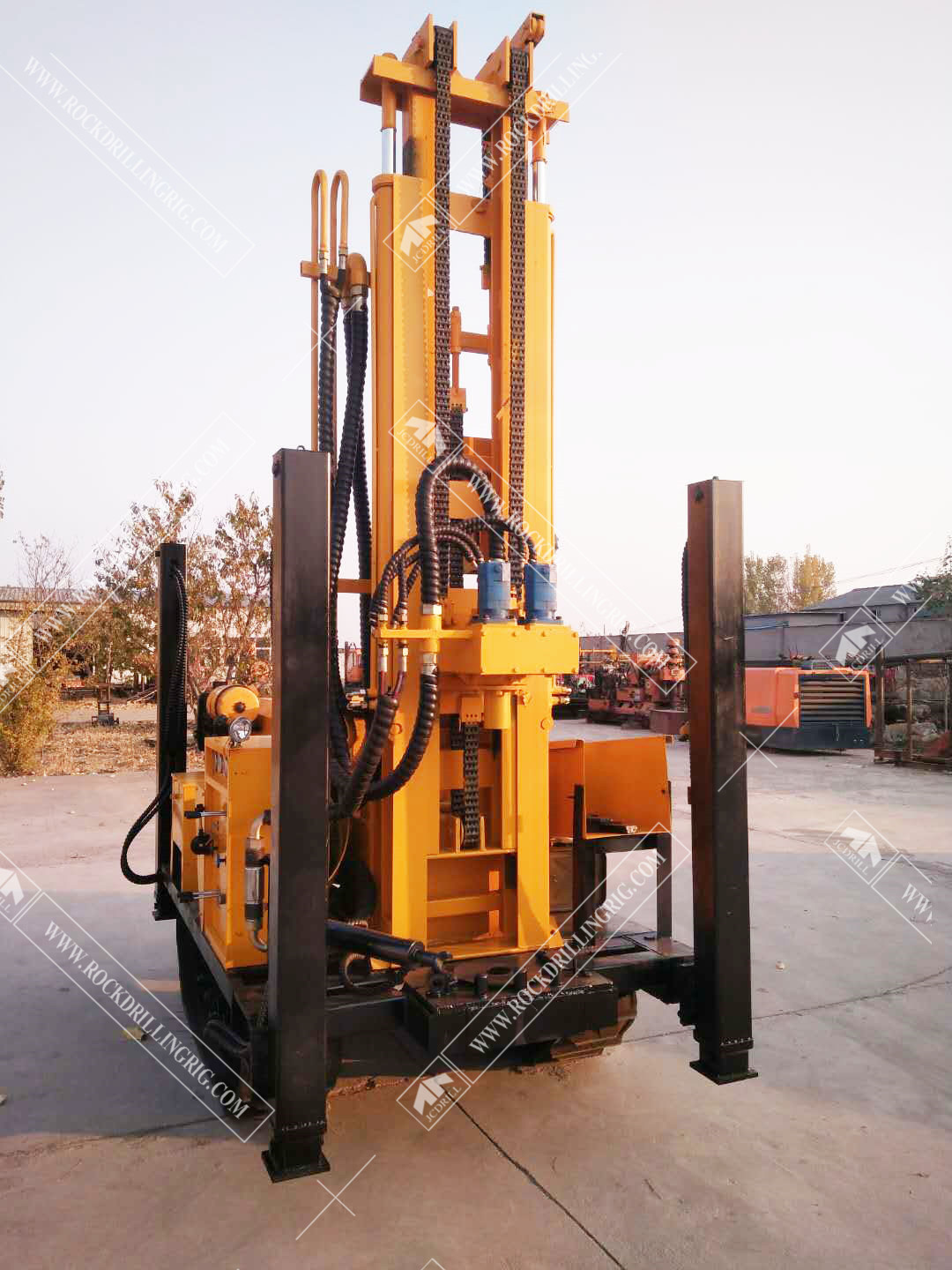

CWD180 Portable Track Mounted Drill Rig for Drilling 180 Meters

CWD180 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

Specification

1	Geology drilled		All kinds
2	Drilling Type		DTH & Mud Rotary
3	Drill system and operation		Hydraulic
4	Hole Diameter	mm	90-305
5	Hole Depth	m	180
6	Rotation Torque	N/M	4200-5600
7	Rotation Speed	rpm	0-100
8	Drill pipe diameter	mm	76/89
9	Drill pipe length	mm	3000
10	Max. Feed Speed	M/min	0-25
11	Max. Lifting Speed	M/min	5-14
12	Feed Stroke	mm	5200
13	Max. Lifting force	Ton	12
14	Max.Pulldown Force	Ton	4
15	Lifting force of hoist	T	1.5
16	Lifting height of tool winch	m	40
Engine
17	Diesel Engine type	QUANCHAI
18	Rated Horse power	Kw	55
19	Electrical System	Volt	24
Compressor required(Optional)
20	Compressor Type	Rotary Screw/Movable
21	Pressure Required	Mpa	1.05—4.5
22	Air consumption	m³/min	16—60
Mud Pump(Optional)
23	Type		Hydrulic
24	Model		BW250
25	Stroke	mm	110
26	Displacement	L/Min	250
27	Discharge pressure (Mpa)	Mpa	2.5-7
28	Suction tube diameter	mm	76
29	Discharge pipe diameter	mm	51
Dimension
30	Net Weight	T	4.8
31	Shipping Length	mm	3600
32	Shipping Width	mm	1700
33	Shipping Height	mm	2150
34	Ground Clearance	mm	300
