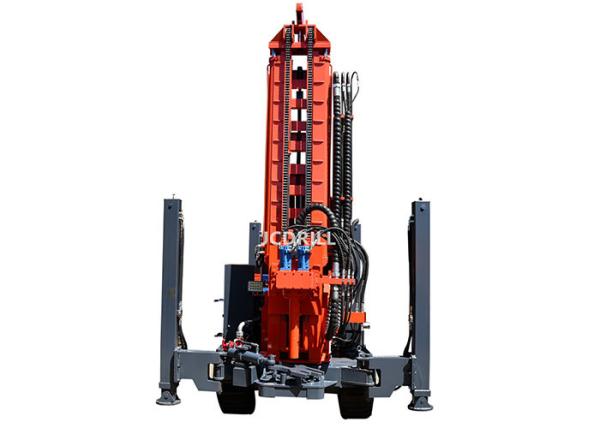

    Hydraulic Crawler Moving Small Water Well Drilling Rig CWD200

    Ask Lasest Price
    Brand Name : JCDRILL
    Model Number : CWD200
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets/year
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    Hydraulic Crawler Moving Small Water Well Drilling Rig CWD200

    Hydraulic Crawler Moving Drilling Machine for Drilling CWD200

    CWD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

    Specification

    Geology DrilledAll kinds
    Drilling TypeDTH & Mud Rotary
    Drill System and OperationHydraulic
    Hole DiametermmΦ90—Φ450
    Hole Depthm200
    Rotation TorqueNm4500-6500
    Rotation Speedrpm0-90
    Drill Pipe Diametermm76/89/102/114
    Drill Pipe Lengthmm3000
    Max. Feed SpeedM/min18
    Max. Lifting SpeedM/min5-20
    Feed Strokemm3400
    Max. Lifting ForceTon14
    Lifting force of Main Winch(Optional)T4
    Lifting Force of HoistKgs1500
    Lifting Height of Tool Winchm6
    Engine
    Diesel Engine TypeYUCHAI
    Rated Horse PowerKw77
    Electrical SystemVolt24
    Compressor Required
    Compressor TypeRotary Screw/Movable
    Pressure RequiredMpa1.2—3.0
    Air Consumptionm³/min11-35
    Mud Pump(Optional)
    TypeHydrulic
    ModelBW450
    Strokemm100
    DisplacementL/Min450
    Discharge Pressure (Mpa)Mpa5
    Suction Tube Diametermm85
    Discharge Pipe Diametermm51
    Foam PumpOptional
    Dimension
    Net WeightKgs5400
    Shipping Lengthmm3950
    Shipping Widthmm1700
    Shipping Heightmm2150
    Ground Clearancemm300
