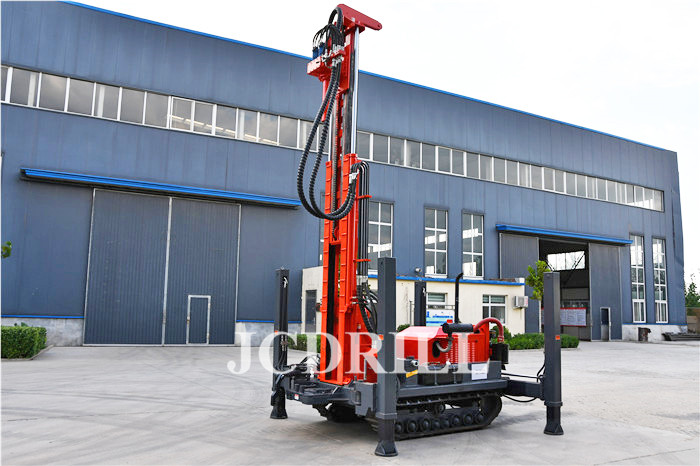

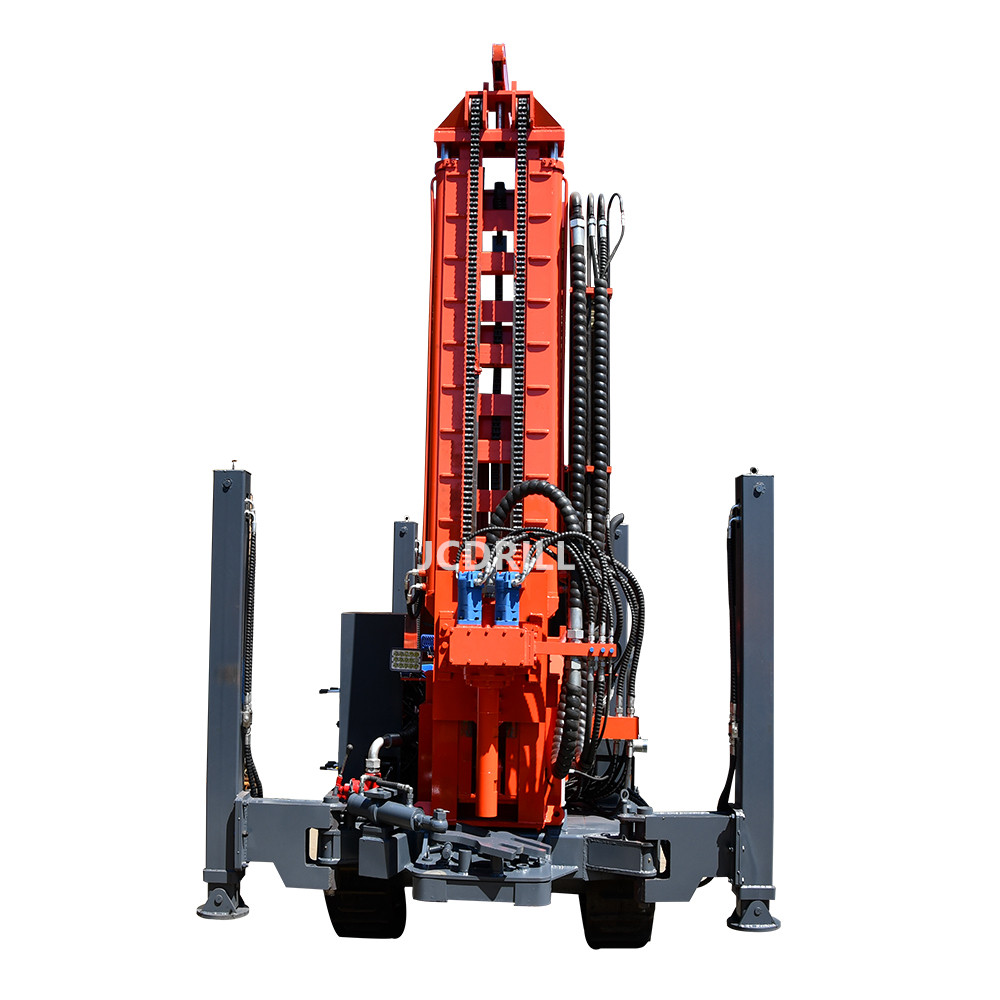

DTH Hydraulic Track Mounted Drill Rig for Sale with Mud Pump

CWD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

Specification

Characteristics

1.The drilling rig can use air DTH Hammer drilling and mud drilling.

2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.

3.The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.

4.It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

5.The power of drilling rig comes from a Yunnei 60kw engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

6.The rotary head,have two gear,rotation speed is 0-90rpm stepless adjustment and the rotary torque is 4500-6500Nm.

7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8.It can set up a generator which is convenient to welding or illuminate for work at night.
