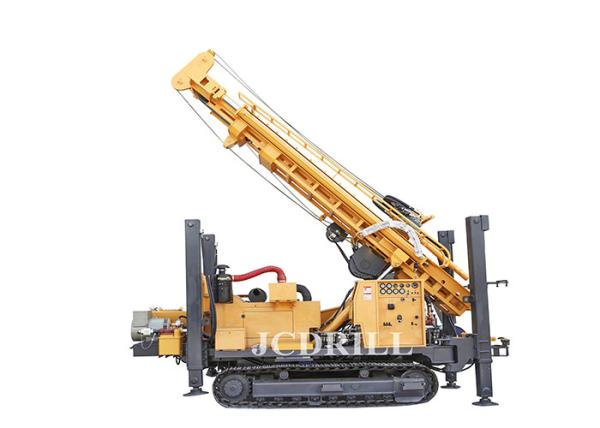

CWD600 Rock and Water Well Drilling Machine for Drilling Water Well

The efficiency of crawler type water well drilling rig CWD600 is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.

Specification

1	Geology drilled		All kinds
2	Drilling Type		DTH & Mud Rotary
3	Drill system and operation		Hydraulic
4	Hole Diameter	mm	Φ140—Φ450
5	Hole Depth	m	600
6	Rotation Torque	Nm	6500 1st Gear
			13000 2nd Ger
7	Rotation Speed	rpm	0-80 1st Gear
			0-160 2nd Ger
8	Drill pipe diameter	mm	89/102/114
9	Drill pipe length	mm	4000/4500
10	Axial pressure	T	10
Winch
11	Max. Lifting force	T	32
12	Lifting force of Main winch(Optional)	T	4
13	Lifting force of hoist	T	1.5
14	Length of steel wire rope(tool winch)	m	100
15	Lifting height of tool winch	m	8
Engine
16	Diesel Engine type	CUMMINS
17	Rated Horse power	Kw	132
18	Electrical System	24	Volt
Compressor required
19	Compressor Type	Rotary Screw/Movable
20	Pressure Required	Mpa	1.05—6.9
21	Air consumption	m³/min	16—96
Mud Pump(Optional)
30	Type		Hydrulic
31	Model		BW450
32	Stroke	mm	110
33	Displacement	L/Min	450
34	Discharge pressure (Mpa)	Mpa	2-3
35	Suction tube diameter	mm	89
36	Discharge pipe diameter	mm	51
37	Liner Diameter	mm	80
Dimension
38	Net Weight	T	15
39	Shipping Length	mm	8500
40	Shipping Width	mm	2300
41	Shipping Height	mm	3300
42	Ground Clearance	mm	300
