    JRC500 500m Depth 100rpm Deep Rock Drilling Rig

    Ask Lasest Price
    Brand Name : JCDRILL
    Model Number : JRC500
    Certification : ISO,CE
    Price : Negotation
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 2000Set/year
    Delivery Time : In stock
    • Product Details
    • Company Profile

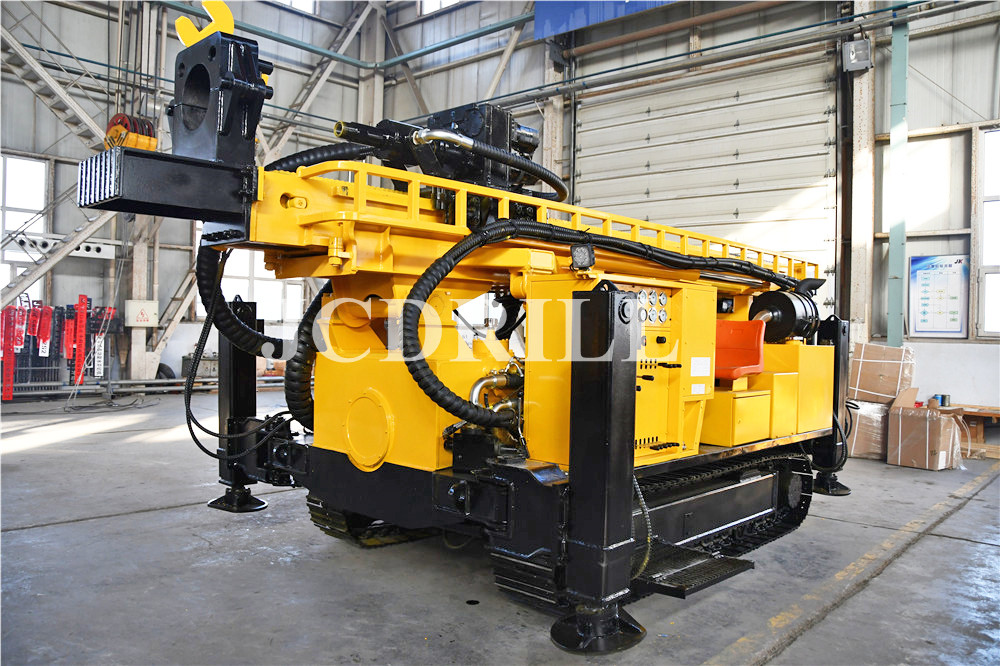

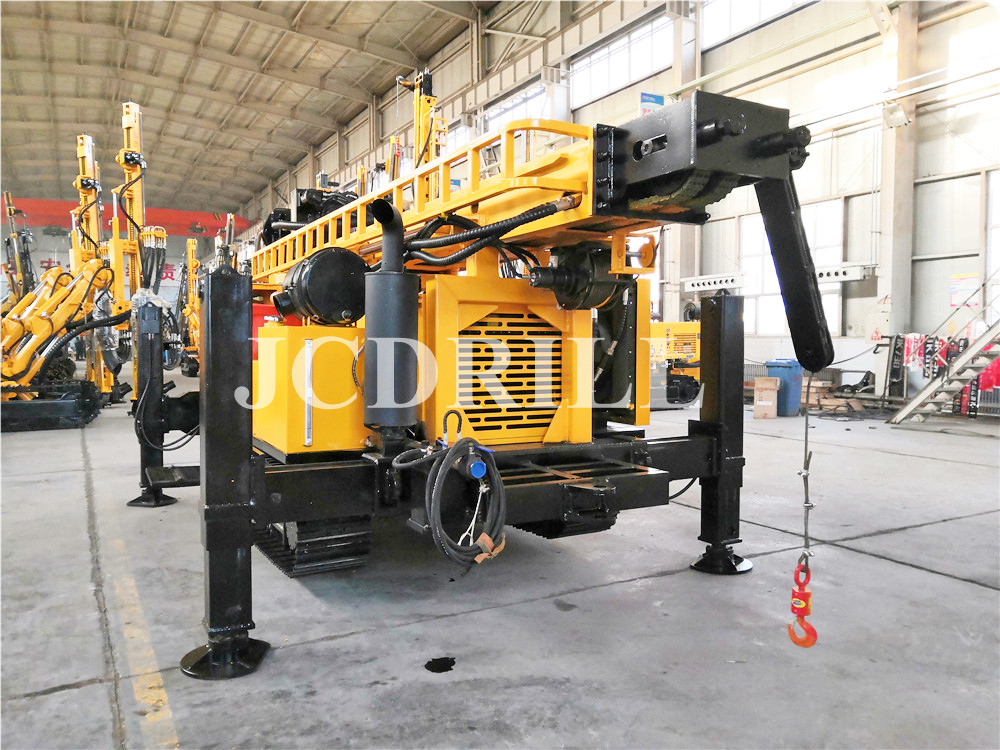

    JRC500 500m Depth 100rpm Deep Rock Drilling Rig

    JRC500 Deep Rock RC Drilling Rig for 500m Depth


    Main Features

    The machine adopts an integrated design of pumping station and drilling rig, and a walking crawler is set at the bottom of the fuselage, which effectively improves the efficiency of moving and steady drilling. It is especially suitable for drilling in narrow tunnels in coal mines.

    Adopting the rotating pan structure (company patented technology), when the crawler chassis isnot moving, relying on the pan rotation, it can achieve +180° azimuth adjustment and -90°~+90" elevation and depression and adjustment to meet the omnidirectional mine tunnel Cloth hole demand.



    Specifiction

    1Geology drilled All kinds
    2Drilling Type DTH & RC
    3Drill system and operation Hydraulic
    4Hole DiametermmΦ90—Φ400
    5Hole Depthm500
    6Rotation TorqueKN85-100
    7Rotation Speedrpm0-80 1st Gear
    0-160 2nd Ger
    8Drill pipe diametermm76/89/114
    9Drill pipe lengthmm4/4500
    10Max. Feed SpeedM/min18
    11Max. Lifting SpeedM/min5-20
    12Feed Strokemm3400
    13Max. Lifting forceT28
    14Lifting force of Main winch(Optional)T4
    15Lifting force of hoistT1.5
    16Lifting height of tool winchm100
    17Diesel Engine typeCUMMINS
    18Rated Horse powerKw180
    19Electrical SystemVolt24
    20Compressor TypeRotary Screw/Movable
    21Pressure RequiredMpa1.05—4.5
    22Air consumptionm³/min16—60
    23Net WeightT13
    24Shipping Lengthmm7550
    25Shipping Widthmm2260
    26Shipping Heightmm2700
    27Ground Clearancemm300
    28Volume of Flowmm20

    Service

    Hydraulic DTH crawler type reverse circulation RC drilling rigAfter sales service system, We establish excellent control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

    We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

    Warranty

    Spare parts

    Every machine issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.

    JCDRILL is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services


    Certification

    Hydraulic DTH crawler type reverse circulation RC drilling rig FAQ

    Q: Are you original manufacturer?Q: Which payment terms are available to us?Q: Which Incoterms 2010 terms can we work?

    A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.


    A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

    A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.


    Q: How long will the delivery time take?Q: How about after sales service?

    Q:Spare Parts When You Need Them


    A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.


    A: 365×24 Year-round Service
    We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

    A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
