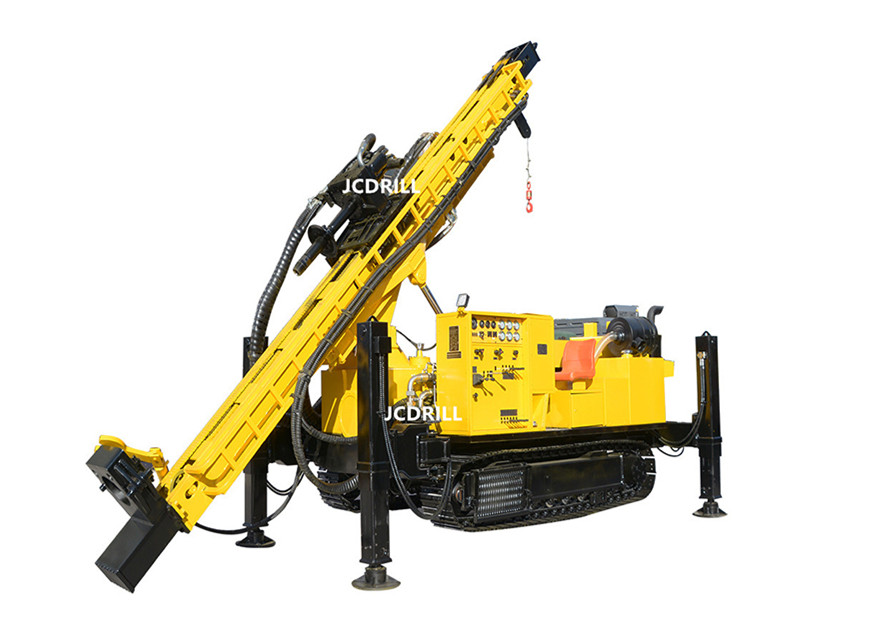

JCDRILL Hot Selling Hydraulic Crawler Exploration Reverse Circulation Drill Rig

The type of RC Drilling Rig, for small and medium open-pit mining , quarrying and infrastructure construction projects, and research and develop a efficient , energy-saving advanced drilling equipment. It inherits the advantages of other rc drilling rigs , while injecting a new design concept, so it has many features, such as easy to maintain, walking safely and stably.

Characteristics

1:Diesel engine mounted hydraulic system,all the system include the walking,rotation,feed,lifting,Leg,lifting, compensation system,rod change is hydraulic.

2: Reverse circulation system working together with DTH technology,air compressor provided pressed air for impact and dust collect.

3. During working,use the reverse circulation hammer,double tube,pressed air enter between two tube and dust out from the inner tube.

4. Also it’s available to positive circulation use normal drilling tool.

5. The working system composed of feed system,guide(mast),rotary head, compensation system, centralizer,rod exchange system, winding and so on.

6. Axes pressure,feed speed,rotary speed is adjustable.

7. The walking system is a self-walking system,convenient for moving,which could install four hydraulic leg,when load on truck,it doesn’t need hiking up,it can load on truck directly.

8. Four hydraulic leg use for keep the balance of the drilling during working.

9. The sub winding could hoisting Max.1ton drilling tool,it also could help to rod change.

10.The guide(mast) could working in 45°-90°,guide have a extension system,which ensure the guide could moving toward the drilling surface,to keep the balance of the guide.

11. Gradienter, angle label and centralizer to ensure the precision accuracy of hole.

12. The air system have a special lubrication system to lubricating the hammer to extend the service life.

Application
JRC300 reverse circulation drilling rig is a new multi-purpose, high-efficiency, environmental protection, multi-track-type rig, which uses the latest foreign gas lift reverse circulation drilling technology, rock dust can be effectively collected through a dust collector to avoid environmental pollution.You can also collect slagging cyclone separator can be used in geological prospecting department of sampling analysis.It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.
The drilling rig can be used in a variety of compressed air on the ground hole reverse circulation drilling. The lifting system,guide compensation, drill pipe loading and unloading, rotation and feed, legs, winch, walking and other system to achieve all of the hydraulic system to significantly reduce the labor intensity and improve the efficiency and quality of construction.


Shipping

Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Beijing Jincheng Mining Technology Co., Ltd. (JCDRILL) is located in Beijing, China. For more than 20 years, we have specialized in the research, development, and production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories & drilling services. With our advanced technology, high-quality equipment, rigorous testing processes, and comprehensive service network, we consistently provide professional drilling solutions to our customers. These strengths have helped establish the “JCDRILL” brand as a trusted name in the market. Currently, JCDRILL products account for 50% of the domestic market and are exported to more than 40 countries. In November 2002, we were awarded ISO9001:2000 certification.

Our manufacturing facilities, covering an area of 9,625 square meters, specialize in the production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories. We employ more than 500 staff, including 26 experienced engineers from Ingersoll Rand and the former Xuanhua Mining Machinery Company. With our strong technological expertise and robust market service capabilities, we have developed both an efficient marketing system and an excellent service support system, earning the trust of customers worldwide.

Additionally, we serve as an authorized agent for mobile double-screw air compressors from Atlas Copco, Sullair, and Liutech. This allows us to offer drilling rig users high-quality, professional air compressor solutions along with reliable after-sales services.

At JCDRILL, we are committed to our strategic vision: “Survival by Quality, Development by Credit.” We strive to provide users with high-quality drilling solutions. Our after-sales service system follows a strict control framework based on ISO-9000 standards. This system ensures that technical data, problem-solving solutions, and preventive measures are provided for every maintenance project. All spare parts are sourced from new OEM products and come with installation instructions, packing lists, manufacturer documentation, qualification certificates, and warranty certificates.

We uphold the principle of “One Equipment, One Case, Endless Service”—our after-sales support begins from the moment an order is confirmed and lasts throughout the equipment’s entire operational life.
