JRC200 Hydraulic Track Mounted Reverse Circulation RC Drilling Rig
Machine
The reverse circulation drilling or RC drilling is a drilling
method that uses a double-walled drill pipe, which consists of an
outer drill pipe and an inner pipe. These hollow inner tubes allow
cuttings to flow continuously and steadily back to the ground.
Specification
| 1 | Geology drilled | | All kinds |
| 2 | Drilling Type | | RC&DTH |
| 3 | Drill system and operation | | Hydraulic |
| 4 | Max.Hole Diameter | mm | Φ105—Φ350 |
| 5 | Max.Hole Depth | m | 200 |
| 6 | Rotation Torque | N.M | 8500 |
| 7 | Rotation Speed(Forward rotation) | rpm | 0-40 1st Gear |
| 0-80 2nd Ger |
| 8 | Rotation Speed(Revise rotation) | rpm | 40 1st Gear |
| 80 2nd Ger |
| 9 | DTH Drill pipe diameter | mm | 76/89/102/114/127 |
| 10 | RC Drill pipe diameter | mm | 102/114/127 |
| 11 | Drill pipe length | mm | 3000 |
| 12 | Max. Feed Speed | M/min | 5-30 |
| 13 | Max. Lifting Speed | M/min | 5-18 |
| 14 | Feed Stroke | mm | 3400 |
| 15 | Max. Lifting force | T | 12 |
| 16 | Lifting force of Main winch(Optional) | T | 4 |
| 17 | Lifting force of tool winch | T | 1.5 |
| 18 | Lifting height of tool winch | m | 7.5 |
| Engine |
| 19 | Diesel Engine type | CUMMINS |
| 20 | Rated Horse power | Kw | 112 |
| 21 | Electrical System | Volt | 24 |
| Centralizer |
| 22 | Type | | Open |
| 23 | Diameter | mm | 300 |
| Hydraulic Clip |
| 24 | Clamping Force | KN | 157 |
| 25 | Clamping Rod Diameter | mm | 76-219 |
| Dimension |
| 26 | Net Weight | T | 13 |
| 27 | Shipping Length | mm | 7550 |
| 28 | Shipping Width | mm | 2260 |
| 29 | Shipping Height | mm | 2700 |
| 30 | Hydraulic Leg Feed Stroke | mm | 600 |
| 31 | Gradeability | ° | 21 |
| 32 | Ground Clearance | mm | 300 |
| 33 | Volume of Flow | mm | 200 |
Charactaristics
1. Diesel engine mounted hydraulic system, all the system include
the walking, rotation, feed, lifting, Leg, lifting, compensation
system, rod change is hydraulic.
2: Reverse circulation system working together with DTH technology,
air compressor provide pressed air for impact and dust collect.
3. During working, use the reverse circulation hammer, double tube,
pressed air enter between two tube and dust out from the inner
tube.
4. Also it's available to positive circulation use normal drilling
tool.
5. The working system composed of feed system, guide(mast),rotary
head, compensation system, centralizer, rod exchange system,
winding and so on.
6. Axes pressure, feed speed, rotary speed is adjustable.

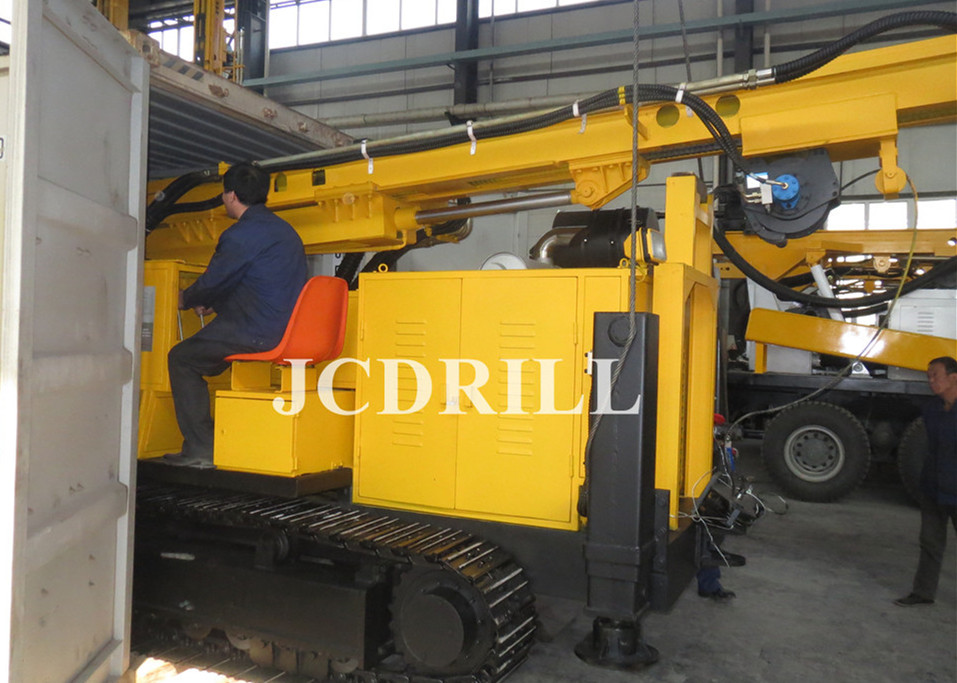

Package
