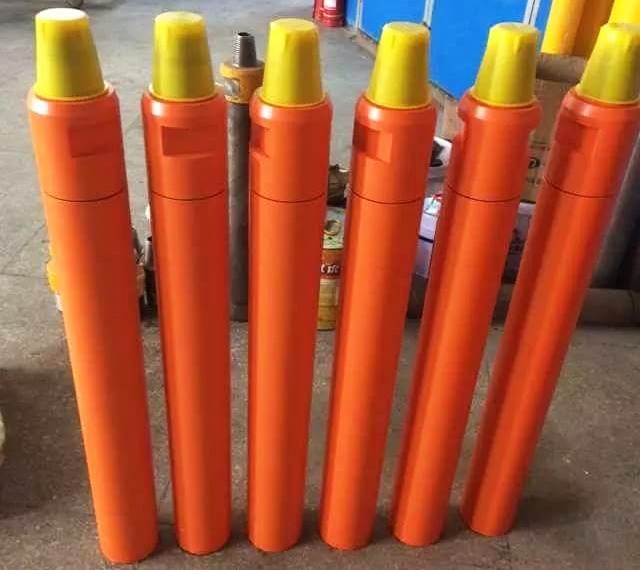

6 Inch Down The Hole Drilling Hammer For DTH And Water well drilling
Application
DTH hammer is used for drilling holes through a wide range of rock
types, the variety of which continues to extend well beyond the
original conception of early blast hole drilling.
Down-the-Hole refers to where the hammer action occurs when
compared to drifter hammers, which hammer on top of the drill
string. The DTH hammer piston always makes direct contact with the
drill bit and there is generally no loss of transmitted energy as
the hammer drills deeper, as is the case with drifter (top hammer)
rigs.
We offers a wide range of DTH hammers suitable for a variety of
drilling operations. Our Down the Hole hammers provide the most
versatile and cost effective rock drilling method.
Characteristics
- Advanced hammer designs with high power and air efficiency
increases productivity
- Tailored product offering covers all your applications and
conditions
- Easy service and maintenance designs reduces machine downtime
- Generic and proprietary shank options give you flexibility and
reliability
Specification
Hammer inch | Bits diameter | Shank | |
Metric | Inch | ||
1" | 64mm-70mm | 2 1/2"-2 3/4" | BR1 |
2" | 70mm-95mm | 2 3/4"-3 3/4" | MACH20/BR2 |
3" | 90mm-102mm | 3 1/2"-4" | COP32/COP34/MACH303 M30/DHD3.5/BR3 |
4" | 105mm-152mm | 4 1/8"-6" | COP44/DHD340/MACH44 SD4/M40/QL40 |
5" | 133mm-165mm | 5 1/4"-6 1/2" | COP54/DHD350R/MACH50 SD5/M50/QL50/BR5 |
6" | 152mm-254mm | 4 1/8"-10" | COP64/DHD360/SD6 M60/QL60/Bulroc BR6 |
8" | 203mm-330mm | 8"-13" | COP84/DHD380/SD8 QL80/M80 |
10" | 254mm-380mm | 10"-15" | SD10 NUMA100 |
12" | 305mm-508mm | 12"-20" | DHD1120/SD12 NUMA120/NUMA125 |
To know 12-30 inch bits information, contact us now. |
DTH hammers specifications:
Hammers | Bit Shank | Connection Thread | Suitable bit | Working pressure | Air consumption | |
1-3" Middle-low pressure DTH hammers | BR1 BR2 BR3 | RD40 box RD50 box API 2 3/8" Reg | Φ64-Φ76mm Φ70-Φ90mm Φ90-Φ110mm | 0.7-1.75Mpa | 0.7 Mpa | 4.5 m3/min |
1.0 Mpa | 4 m3/min | |||||
1.4 Mpa | 5 m3/min | |||||
3" hammers | DHD3.5 COP32/COP34 M30 | API 2 3/8"Reg | Φ90-Φ110mm | 1.0-1.5Mpa | 1.0 Mpa | 4.5 m3/min |
1.5 Mpa | 9 m3/min | |||||
4" hammers | DHD340 COP44 QL40 SD4 M40 | API 2 3/8"Reg | Φ105-Φ130mm | 1.0-2.5Mpa | 1.0 Mpa | 6 m3/min |
1.8 Mpa | 10 m3/min | |||||
2.4 Mpa | 15 m3/min | |||||
5" hammers | DHD350 COP54 QL50 SD5 M50 | API 2 3/8"Reg API 3 1/2"Reg | Φ130-Φ156mm | 1.0-2.5Mpa | 1.0 Mpa | 9 m3/min |
1.8 Mpa | 15 m3/min | |||||
2.4 Mpa | 23 m3/min | |||||
6" hammers | DHD360 COP64 QL60 SD6 M60 | API 3 1/2"Reg | Φ152-Φ203mm | 1.0-2.5Mpa | 1.0 Mpa | 10 m3/min |
1.8 Mpa | 20 m3/min | |||||
2.4 Mpa | 28.5 m3/min | |||||
8" hammers | DHD380 COP84 QL80 SD8 M80 | API 4 1/2"Reg | Φ200-Φ279mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
1.8Mpa | 26m3/min | |||||
2.4Mpa | 34m3/min | |||||
10" hammers | SD10 NUMA100 | API 6 5/8"Reg | Φ254-Φ330mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
1.8Mpa | 40m3/min | |||||
2.4Mpa | 55m3/min | |||||
12" hammers | DHD1120 SD12 NUMA120 NUMA125 | API 6 5/8"Reg | Φ305-Φ381mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
1.8Mpa | 56m3/min | |||||
2.4Mpa | 78m3/min |
