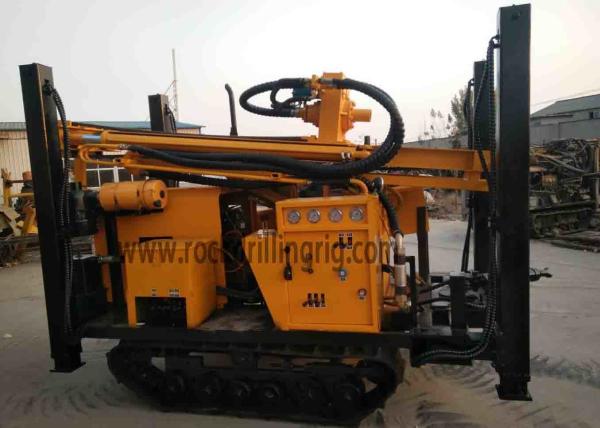

300m Crawler Mounted Hydraulic Water Well Drilling Machine 105 -
350mm Hole Diameter
JCDRILL Water Well Drill Rig
300mCrawler mounted hydraulic drilling rig with hydraulic winch,mud
pump
Application
S300 crawler mounted drilling rig can drilling in all kinds
formations by mud drilling in soft formation and air DTH hammer in
rock drilling,DTH Hammer is applied in rock drilling, slag is
discharged by air pressure and the offstage efficiency is ten times
than traditional rotary drilling.
Characteristics
1.The drilling rig can use air DTH Hammer drilling and mud
drilling.
2.Centralized control console is suitable for each manipulation and
control. Rapid pulling and lifting reduce the auxiliary time and
enhance the work efficiency.
3.The main drive system, the transfer case, gearbox, double-winch
unit, mud pump, turntable,drilling tower, feed system are set up on
the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation.
It can equipped with BW350 mud pump which adopts the slurry as the
washing fluid and can drill on clay,sand and rock if it is equipped
with suitable drilling bit.
Specification
| 1 | Geology drilled | | All kinds |
| 2 | Drilling Type | | DTH and Mud Rotary |
| 3 | Drill system and operation | | Hydraulic |
| 4 | Hole Diameter | mm | 105-350 |
| 5 | Hole Depth | m | 300 |
| 6 | Rotation Torque | Nm | 7500 |
| 7 | Rotation Speed | rpm | 0-80 1st Gear |
| 0-160 2nd Ger |
| 8 | Drill pipe diameter | mm | 89/114 |
| 9 | Drill pipe length | mm | 3000 |
| 10 | Max. Feed Speed | M/min | 18 |
| 11 | Max. Lifting Speed | M/min | 5-20 |
| 12 | Feed Stroke | mm | 3400 |
| 11 | Max. Lifting force | N | 120000 |
| 12 | Lifting force of Main winch(Optional) | T | 4 |
| 13 | Lifting force of hoist | T | 1.5 |
| 14 | Lifting height of tool winch | m | 6 |
| 15 | Diesel Engine type | CUMMINS |
| 16 | Rated Horse power | Kw | 102 |
| 17 | Electrical System | Volt | 24 |
| 18 | Compressor Type | Rotary Screw/Movable |
| 19 | Pressure Required | Mpa | 1.2—3.5 |
| 20 | Air consumption | m3/min | 16—40 |
| 21 | Type | | Hydrulic |
| 22 | Model | | BW350 |
| 23 | Stroke | mm | 100 |
| 24 | Displacement | L/Min | 250 |
| 25 | Discharge pressure (Mpa) | Mpa | 2.5 |
| 26 | Suction tube diameter | mm | 85 |
| 27 | Discharge pipe diameter | mm | 51 |
| 28 | Foam pump | | Optional |
| 36 | Net Weight | T | 9000 |
| 37 | Shipping Length | mm | 6100 |
| 38 | Shipping Width | mm | 2200 |
| 39 | Shipping Height | mm | 3200 |
| 40 | Ground Clearance | mm | 300 |
| 41 | Volume of Flow | mm | 200 |
Package
Standard sea transportation package or packed as customer's
requirement
Our Services
In our after sales service system, We establish perfect control
system strictly according to ISO-9000 series, in this system,
technology date and problem solve solution and preventive measures
will be provided in any maintain project, all the spare parts will
be used in new OEM products with installation instructions, packing
list, manufacturer's instruction, qualification and Warranty
certificate.
We provide "one equipment and one case, endless service, namely the
after sales service begin from the order confirmation, last for the
working life of the equipment.
Company Information
Jincheng provide users high quality Mining & Drilling solutions,we
always focus on the strategic conception of “Survival by quality,
Development by credit’’.
We have specilized in research, development and produce of rock
blasting drilling rig, water well drilling rig, diamond core
drilling rig, anchor drilling rig, and relative accessories &
drilling services. constantly provide professional drilling
solutions for all customers with our advanced technology, excellent
equipment, strict testing means and perfect service network, which
establish our brand “JINCHENG” a good image of market, now,we
products account for 50% of domestic market and have been export to
more than 40 countries, and we awarded ISO9001: 2000 in November,
2002.
With excellent technology and solid market service capabilities, we
have both a sound marketing system and excellent service support
system, which help us win confidence of customers both at home and
abroad,we can provide drilling rig users with high quality
professional air compressor solution and relative after-sales
service also.
Certification
FAQ
| Q: Are you original manufacturer? | Q: Which payment terms are available to us? | Q: Which Incoterms 2010 terms can we work? |
A: Yes, we JCDRILL is a official leading manufacture in drilling
machinery in China and we have the whole series products you need.
| A: T/T term or L/C term. On T/T term, 30% down payment is required
in advance, and 70% balance shall be settled before shipment. On
L/C term, a 100% irrevocable L/C without "soft clauses" can be
accepted. | A: We JCDRILL are a professional and international company, accept
all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|
| Q: How long will the delivery time take? | Q: How about after sales service? | Q:Spare Parts When You Need Them
|
A: Normally mud pump products will take about 3-15 days to produce
the ordered machines. Most of the time, we can have an immediate
delivery of our regular machines in 15 days.
| A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during
holidays, in line with our policy of always providing "a response
within 15 minutes and job completion within 24 hours." | A:We have spare parts centers across continents that stock
specialist spare parts. We promise that spare parts will be
delivered within 72 hours or no more than one week.
|
