Good Performance and Factory Price Hex. Tapered Drill Rod for Hard Rock Drilling

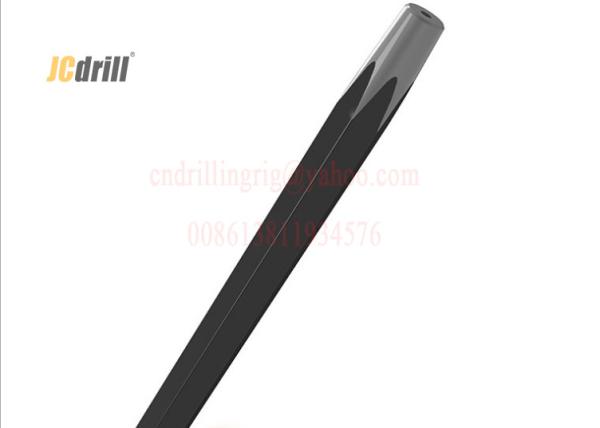

JCDRILL Integral Tapered Drill Rods

Tapered drill rod,another name called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end. Tapered steel lengths— available from 0.6m to 3.6 m in length—are measured from the collar to the bit end.

Characteristic

A wide taper degree is normally used when drilling with high impact hydraulic rock drills in medium hard to hard and abrasive rock formations.

Generally, the lightduty rock drill uses 7 taper or smaller taper degree, the heavyduty rock drill mainly uses 12 taper degree.

The tapered drill rods have a tough life, transferring the percussion energy from rock drill to drilling bit and then into the rock. They're also subjected to high bending stress, not to mention corrosive water in the flushing hole.

It is forbidden to keep working when the tapered drill rod is bended, otherwise the service life of the tapered drill rod would be decreased.
If the tapered drill rod was sheared, it can be restored by re-machining a new taper.

Specification

Shank Hexagon: 19 x108 mm, 22x 108mm, 25 x108 mm, 25 mmX159 mm 7, 11, 12 degree taper in most lengths, taper degree of drill steel is mostly imports for excellent drilling productivity.
For drilling medium-hard to hard and abrasive rock formations,Taper angles of 11 and 12 degrees are normally used on modern drill rigs, like YT28B, YT29A, Y24, YT24, Mobile rock drill pneumatic and hydraulic.
For low impact rock drills and softer rock formations, a narrow tape range of 7 degrees is used, such as Indian, Saudi's granite and marble quarry.
A comprehensive range of taper button bits, cross bits and chisel bits with 7, 11, 12 degree taper.

Certification

Service

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

FAQ

1. Shipping time for an order

We have many stock. As usual, we can delivery the goods as soon as we get the full payment.

2. Quality Control

Strict inspection and testing for every order before shipping out .

3. How to order

Shank Style + rod Length + Head Diameter.

4.How can we trust your company?

We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.

Beijing Jincheng Mining Technology Co., Ltd. (JCDRILL) is located in Beijing, China. For more than 20 years, we have specialized in the research, development, and production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories & drilling services. With our advanced technology, high-quality equipment, rigorous testing processes, and comprehensive service network, we consistently provide professional drilling solutions to our customers. These strengths have helped establish the “JCDRILL” brand as a trusted name in the market. Currently, JCDRILL products account for 50% of the domestic market and are exported to more than 40 countries. In November 2002, we were awarded ISO9001:2000 certification.

Our manufacturing facilities, covering an area of 9,625 square meters, specialize in the production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories. We employ more than 500 staff, including 26 experienced engineers from Ingersoll Rand and the former Xuanhua Mining Machinery Company. With our strong technological expertise and robust market service capabilities, we have developed both an efficient marketing system and an excellent service support system, earning the trust of customers worldwide.

Additionally, we serve as an authorized agent for mobile double-screw air compressors from Atlas Copco, Sullair, and Liutech. This allows us to offer drilling rig users high-quality, professional air compressor solutions along with reliable after-sales services.

At JCDRILL, we are committed to our strategic vision: “Survival by Quality, Development by Credit.” We strive to provide users with high-quality drilling solutions. Our after-sales service system follows a strict control framework based on ISO-9000 standards. This system ensures that technical data, problem-solving solutions, and preventive measures are provided for every maintenance project. All spare parts are sourced from new OEM products and come with installation instructions, packing lists, manufacturer documentation, qualification certificates, and warranty certificates.

We uphold the principle of “One Equipment, One Case, Endless Service”—our after-sales support begins from the moment an order is confirmed and lasts throughout the equipment’s entire operational life.
