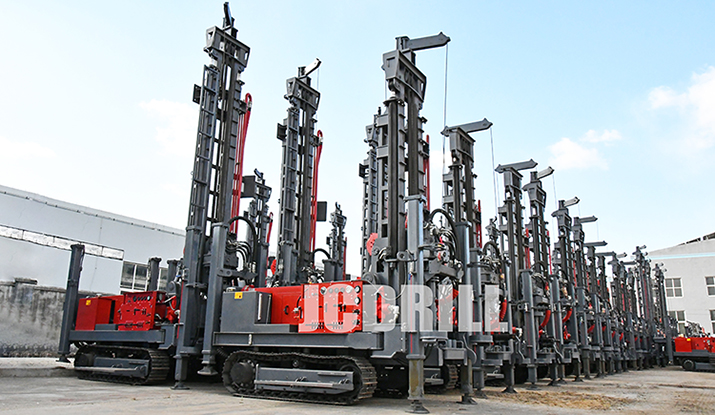

    200m Movable Hydraulic Well Drilling Rig Machine Cwd200t

    Ask Lasest Price
    Brand Name : JCDRILL
    Model Number : CWD200T Movable Water Well Drilling Machine
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 sets/year
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    200m Movable Hydraulic Well Drilling Rig Machine Cwd200t

    200m Movable Water Well Drilling Machine CWD200T


    >> Introduction

    CWD200T deep water well drilling rigs.in cutting drilling or rotary drilling can be operated in unconsolidated layer,and the slag can be discharged under by mud,the impact drilling operation can also be adopted and slag can be discharged by pressure air. CWD200T movable water well drillingmachine supports air DTH and mainly applied to industrial and civil drilling and geothermal drilling.It has the advantages of large diameter of drilling hole,deep drilling,fast footage,and high efficiency.

    >> Characteristic

    1) The drilling rig can use air DTH hammer drilling and mud drilling.
    2) Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
    3) The main drive system,the transfer case,gearbox,double-winch unit,mud pump,turntable,drilling tower,feed system are set up on the chassis.
    4) The power of drilling rig comes from a Yuchai engine,58kw Yunnei engine drives the large displacement high pressure plunger pump and it is characterized by powerful drnamic and stable performance.

    >> Specification

    SpecificationUnitCWD200T
    Geology drilledAll Kind
    Drilling TypeDTH & MUD
    Drill system and operationHydraulic
    Hole DiametermmΦ90—Φ350
    Hole Depthm200
    Rotation TorqueNm5500
    Rotation Speedrpm60-115
    Drill pipe diametermm76/89/102
    Drill pipe lengthmm3000
    Max. Feed SpeedM/min80
    Max. Lifting SpeedM/min40
    Feed Strokemm3600
    Max. Pull back CapacityT12
    Lifting force of WinchT1.2
    Engine
    Diesel Engine type4Cylinder,water cooling
    Diesel Engine BrandYUNNEI
    Rated Horse powerKw58
    Compressor required(Optional)
    Pressure RequiredMpa1.5-2.5
    Air consumptionm³/min15-30
    Mud Pump(Optional/Separate or on board)
    ModelBW250
    DisplacementL/Min4
    Dimension
    Net WeightKgs5300
    Transportation dimensionmm4070*1550*2070
    Work Dimensionmm3260*2380*6190
    Ground Clearancemm300

    >> Package & Delivery

    >> Our Service

    >> Pre-sale service

    Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

    >> Select suitable model & matched equipment.

    >> Strong technical support. Reply clients' questions within 24 hours.

    >> Service During Sales

    We have responsible team from raw material to finished products, and guarantee 100% pass rate.

    >> Design and manufacture products basis of client's special equirement

    >> Inspect each machine & matched accessories strictly before delivery

    >> Timely inform client of production progress.


    >> After Sales Service

    We're always with you in after-sale service.

    >> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.


    >> Overseas Service&Project

    >> FAQ

    Q: Are you original manufacturer?


    Q: Which payment terms are available to us?Q: Which Incoterms 2010 terms can we work?
    A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
    Q: How long will the delivery time take?Q: How about after sales service?Q:Spare Parts When You Need Them
    A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
