    Light Weight 200m Water Well Drilling Rig Four Wheels Type Mud Pump

    Ask Lasest Price
    Brand Name : JCDRILL
    Model Number : JXY200T
    Certification : ISO 9001:2008
    Price : USD9990-12000
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets per year
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    Light Weight 200m Water Well Drilling Rig Four Wheels Type Mud Pump


    Light weight 200m four wheels type mud pump drilling water well drilling machine


    >> Specification
    1.Overall parameters
    Drilling depth200m
    Maximum open hole caliber400mm
    End hole caliber75mm
    Diameter of drill rod50mm
    Drilling angle90~75
    Weight(not include power)760kg
    Dimension2750*950*1600mm
    2. Vertical shaft
    Rotating speed71,142, ,310,,620r/min
    Feeding stroke450mm
    3.Hoist
    Maximum. single line hoisting capacity2400Kg
    Diameter of wire rope13mm
    Volume of winding drum35m
    Hug floodgate caliber230mm
    Hug floodgate belt width70mm
    4.Mud pump
    TypeHorizontal single urn twin-action
    Rate of flow180L/min
    Maximum. pressure1.5MPa
    Working pressure0.7MPa
    Diameter of water inlet tube50mm
    Diameter of water outlet tube45mm
    5.Power
    Diesel engine22HP, 2200r/min
    Electrical motor15KW, 1460r/min

    >> Our Service

    Light Weight 200m Water Well Drilling Rig Four Wheels Type Mud Pump


    >> Pre-sale service

    Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

    >> Select suitable model & matched equipment.

    >> Strong technical support. Reply clients' questions within 24 hours.

    >> Service During Sales

    We have responsible team from raw material to finished products, and guarantee 100% pass rate.

    >> Design and manufacture products basis of client's special equirement

    >> Inspect each machine & matched accessories strictly before delivery

    >> Timely inform client of production progress.

    >> After Sales Service

    We're always with you in after-sale service.

    >> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.

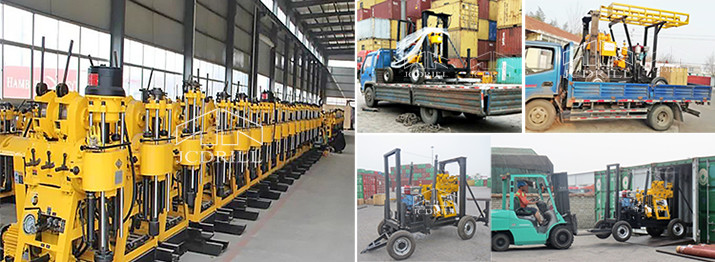

    >> Package & Shipment
