Diamond Rock Drilling Rig 200m Borehole Water Well Drilling Rig

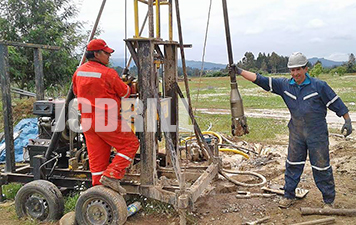

JXY200 Hydraulic drilling rig machine adopts the latest design with trailer mounted mobile base, mechanical transmission and hydraulic operation system. It is equipped with three-wing bit, alloy bit and diamond bit for different geological formations, such as soil, sand, gravel, granite, hard rock, etc.The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.

>> Characteristics

1. Exploration for foundation engineering;
2. Construction;
3. Water well or geotechnical survey drilling for caliber within diameter 600mm;
4. Holes for inspection, rescue, project quality test as well as geological exploration and coal field prospecting;
Power Supply
It can be driven by either electric motor or diesel engine.

>> Specification

1.Overall parameters
Drilling depth	200m
Maximum open hole caliber	400mm
End hole caliber	75mm
Diameter of drill rod	50mm
Drilling angle	90~75
Weight(not include power)	760kg
Dimension	2750*950*1600mm
2. Vertical shaft
Rotating speed	71,142, ,310,,620r/min
Feeding stroke	450mm
3.Hoist
Maximum. single line hoisting capacity	2400Kg
Diameter of wire rope	13mm
Volume of winding drum	35m
Hug floodgate caliber	230mm
Hug floodgate belt width	70mm
4.Mud pump
Type	Horizontal single urn twin-action
Rate of flow	180L/min
Maximum. pressure	1.5MPa
Working pressure	0.7MPa
Diameter of water inlet tube	50mm
Diameter of water outlet tube	45mm
5.Power
Diesel engine	22HP, 2200r/min
Electrical motor	15KW, 1460r/min
