small size light weight 400m trailer vertical spline water well drilling machine

>> Application

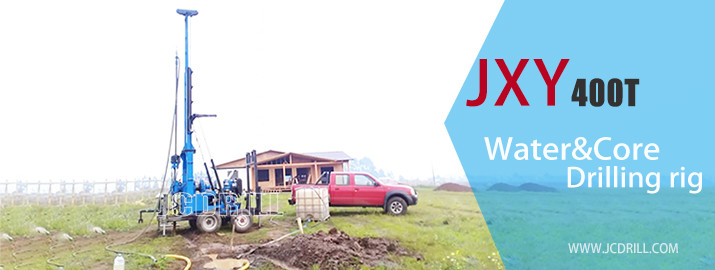

The JXY400T trailer mounted drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment. With hydraulic feed mechanism, improve drilling efficiency.
Advanced hydraulic system design makes the control handles concentrated, compact layout reasonable, easy operation, flexible and reliable; Can realize remote speed change, more humanization operation;
It equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master the hole.

The drilling rig has 8 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable range.
Compact mechanical transmission structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good rigidity.

Falling tower for hydraulic operation, convenient and reliable
Diesel engine with electric start, reduce labor intensity.

It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock.

Exploration for foundation engineering;
Construction;
Water well or geotechnical survey drilling for caliber within diameter 600mm;
Holes for inspection, rescue, project quality test as well as geological exploration and coal field prospecting;

>> Specification

Drilling depth	M	75	219	273	400	600
Drilling Dia.	mm	400	160	130	100	30
Open hole Dia.	mm	600
End hole Dia.	mm	75
Drilling rod	mm	42, 50, 60, 76
Drilling angle		0-90°
Rotary Spindle
Spindle forward speed	R/min	50-1150
Spindle reverse speed	R/min	29-137
Spindle stroke	mm	600
Spindle inner diameter	mm	62
Spindle lifting capacity	Kg	6000
Spindle Max. Torque	N/M	2800
Main Winch (Hydraulic)
Single line lifting speed	M/s	0.5-1.9
Tightrope diameter	mm	14
Hoist single line lifting capacity	Kg	4000
Roller diameter	mm	300
Roller cubic measure	M	50
Tools Winch
Tightrope diameter	mm	6
Roller diameter	mm	140
Roller cubic measure	M	450
Drilling rig Power(choose one between the following two)
Diesel engine	Kw/HP	17.6/24
Electric motor	KW	Y160L, 18.5kw
Trailer
Loading Capacity	T	8.5
Weight&Size
Weight	Kg	3000
Dimension	mm	3980×1950×2750

>> Overseas Service&Project

>> Certification

JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''. We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002. With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.

Beijing Jincheng Mining Technology Co., Ltd. (JCDRILL) is located in Beijing, China. For more than 20 years, we have specialized in the research, development, and production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories & drilling services. With our advanced technology, high-quality equipment, rigorous testing processes, and comprehensive service network, we consistently provide professional drilling solutions to our customers. These strengths have helped establish the “JCDRILL” brand as a trusted name in the market. Currently, JCDRILL products account for 50% of the domestic market and are exported to more than 40 countries. In November 2002, we were awarded ISO9001:2000 certification.

Our manufacturing facilities, covering an area of 9,625 square meters, specialize in the production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories. We employ more than 500 staff, including 26 experienced engineers from Ingersoll Rand and the former Xuanhua Mining Machinery Company. With our strong technological expertise and robust market service capabilities, we have developed both an efficient marketing system and an excellent service support system, earning the trust of customers worldwide.

Additionally, we serve as an authorized agent for mobile double-screw air compressors from Atlas Copco, Sullair, and Liutech. This allows us to offer drilling rig users high-quality, professional air compressor solutions along with reliable after-sales services.

At JCDRILL, we are committed to our strategic vision: “Survival by Quality, Development by Credit.” We strive to provide users with high-quality drilling solutions. Our after-sales service system follows a strict control framework based on ISO-9000 standards. This system ensures that technical data, problem-solving solutions, and preventive measures are provided for every maintenance project. All spare parts are sourced from new OEM products and come with installation instructions, packing lists, manufacturer documentation, qualification certificates, and warranty certificates.

We uphold the principle of “One Equipment, One Case, Endless Service”—our after-sales support begins from the moment an order is confirmed and lasts throughout the equipment’s entire operational life.
