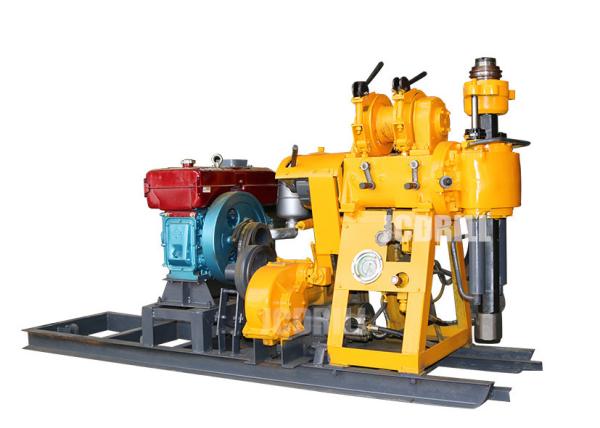

Popular portable skid mounted JXY180 borehole rock water well drilling machine water well drilling rig

>> Introduction

JXY180 type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity. The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.

It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.

Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.

Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.

Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.

The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

>> Characteristic

>> Specification

Item.	JXY130	JXY180	JXY200
Drilling depth(m)	130m	180m	200m
Max.Hole dia soil/rock(mm)	500, 220	500, 220	500, 273
End Hole Diameter(mm)	75	75	75
Drill Rod diameter(mm)	42, 60	42, 60	42, 50, 60
Drill Angle	90-75	90-75	90-75
Weight without engine(kg)	600/740	620/750	880/970
Machine Dimension(m)	2.4*0.8*1.3	2.4*0.8*1.4	2.7*0.9*1.5
Power
Engine power(KW)	13.2	13.2	15
Spindle
Speed(r/min)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Stroke(mm)	450	450	450
Hoist
Single rope lift force(kg)	1800	2100	2500
Single rope lift speed(m/s)	0.41-1.64	0.35-2.23	0.12-0.95
Rope diameter(mm)	9.3	9.3	12.5
Rope capacity(m)	27	27	35
Drill Mast
Rated load (Kgs)	2000	2000	5000
Effective height(m)	6	6	6
Mud Pump
Flow(L/MIN)	95	95	145
Max. pressure(Mpa)	1.2	1.2	2
Back and forth times/min	93	93	93
Inlet hose dia.(mm)	51	51	51
Outlet hose dia.(mm)	32	32	32

>> Package & Shipment

>> Our Service

>> Pre-sale service Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement. >> Select suitable model & matched equipment. >> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales We have responsible team from raw material to finished products, and guarantee 100% pass rate. >> Design and manufacture products basis of client's special equirement >> Inspect each machine & matched accessories strictly before delivery >> Timely inform client of production progress.

>> After Sales Service We're always with you in after-sale service. >> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.
