    200m Portable Water Well Drilling Rig Hydraulic Vertical Spline For Coring

    Ask Lasest Price
    Brand Name : JCDRILL
    Model Number : JXY200
    Certification : ISO 9001:2008
    Price : USD9000-12000/set
    Payment Terms : T/T
    Supply Ability : 2000sets per year
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    200m Portable Water Well Drilling Rig Hydraulic Vertical Spline For Coring

    200M Good price portable hydraulic vertical spline coring rig and water well drilling machine for sales

    200m Portable Water Well Drilling Rig Hydraulic Vertical Spline For Coring

    >> Introduction

    JXY200 type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity. The rig for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.

    It can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc. Level 3, 2-9 drilling, sandy clay and rock formations, etc.

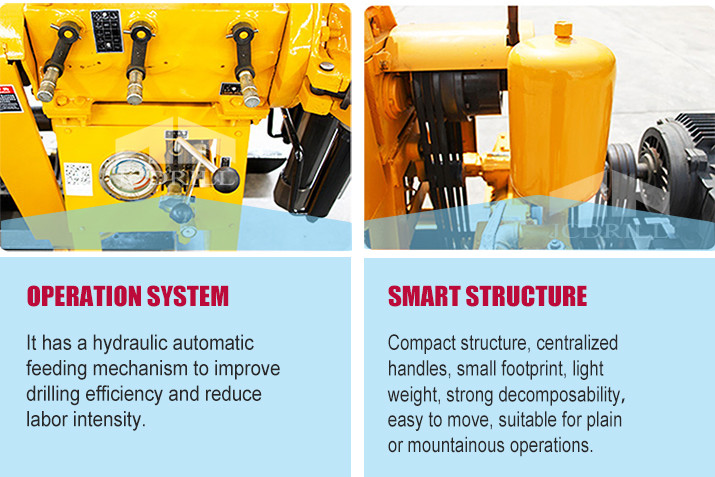

    Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.

    Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable. Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock.

    Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer.

    The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance.

    >> Characteristic

    200m Portable Water Well Drilling Rig Hydraulic Vertical Spline For Coring

    200m Portable Water Well Drilling Rig Hydraulic Vertical Spline For Coring

    200m Portable Water Well Drilling Rig Hydraulic Vertical Spline For Coring

    200m Portable Water Well Drilling Rig Hydraulic Vertical Spline For Coring

    >> Specification

    Item.JXY130JXY180JXY200
    Drilling depth(m)130m180m200m
    Max.Hole dia soil/rock(mm)500, 220500, 220500, 273
    End Hole Diameter(mm)757575
    Drill Rod diameter(mm)42, 6042, 6042, 50, 60
    Drill Angle90-7590-7590-75
    Weight without engine(kg)600/740620/750880/970
    Machine Dimension(m)2.4*0.8*1.32.4*0.8*1.42.7*0.9*1.5
    Power
    Engine power(KW)13.213.215
    Spindle
    Speed(r/min)142/285/570130/300/480/730/830/104564/128/287/557
    Stroke(mm)450450450
    Hoist
    Single rope lift force(kg)180021002500
    Single rope lift speed(m/s)0.41-1.640.35-2.230.12-0.95
    Rope diameter(mm)9.39.312.5
    Rope capacity(m)272735
    Drill Mast
    Rated load (Kgs)200020005000
    Effective height(m)666
    Mud Pump
    Flow(L/MIN)9595145
    Max. pressure(Mpa)1.21.22
    Back and forth times/min939393
    Inlet hose dia.(mm)515151
    Outlet hose dia.(mm)323232
