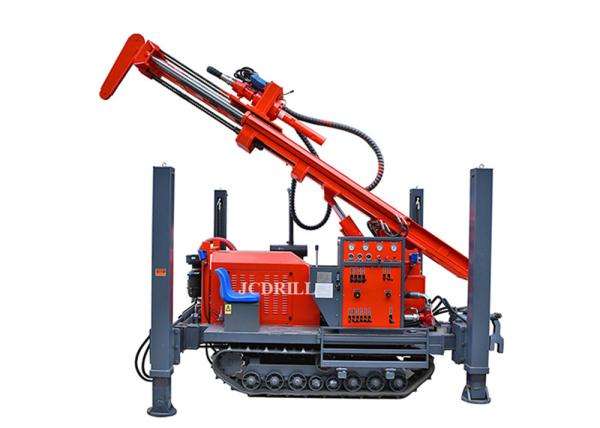

CWD200 Multi-functional track mounted water well drilling rig

CWD200 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

Right elevation	Left elevation	Front elevation

PRODUCTS SPECIFICATION

Specification	Unit	CWD200
Geology drilled		All Kind
Drilling Type		DTH & MUD
Crawler Type		Rubber Crawler(Steel Crawler Optional)
Operation System		Hydraulic
Hole Diameter	mm	Φ90—Φ350
Hole Depth	m	200
Rotation Torque	Nm	4500-6500
Rotation Speed	rpm	45-115
Drill pipe diameter	mm	76/89/102
Drill pipe length	mm	3000
Max. Feed Speed	M/min	80
Max. Lifting Speed	M/min	40
Feed Stroke	mm	3600
Max. Pull back Capacity	T	14
Lifting force of Winch	T	1.2
Engine
Diesel Engine type		4Cylinder,water cooling
Diesel Engine Brand		YUCHAI
Rated Horse power	Kw	77
Compressor required(Optional)
Pressure Required	Mpa	15-30
Air consumption	m³/min	1.5-2.5
Mud Pump(Optional/Separate)
Model		BW250
Displacement	L/Min	250
Discharge pressure (Mpa)	Mpa	2.5-7
Dimension
Net Weight	Kgs	5400
Transportation dimension	mm	4070*1700*2180
Ground Clearance	mm	300

PRODUCT CONFIGURATION

Famous Hydraulic Control Valve	YUCHAI 70KW Engine	High power hydraulic pump
High Hydraulic Support Leg	Heavy Duty Rubber Crawler	1.5Ton Hydraulic Tool Winch

PRODUCTS LOADING
