    KG430H 25m Multifunctional DTH Mining Core Drilling Rig Mining Rock Drilling Machine

    Ask Lasest Price
    Brand Name : JCDRILL
    Model Number : KG430H
    Certification : ISO,CE
    Price : Negotation
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 2000Set/year
    Delivery Time : In stock
    • Product Details
    • Company Profile

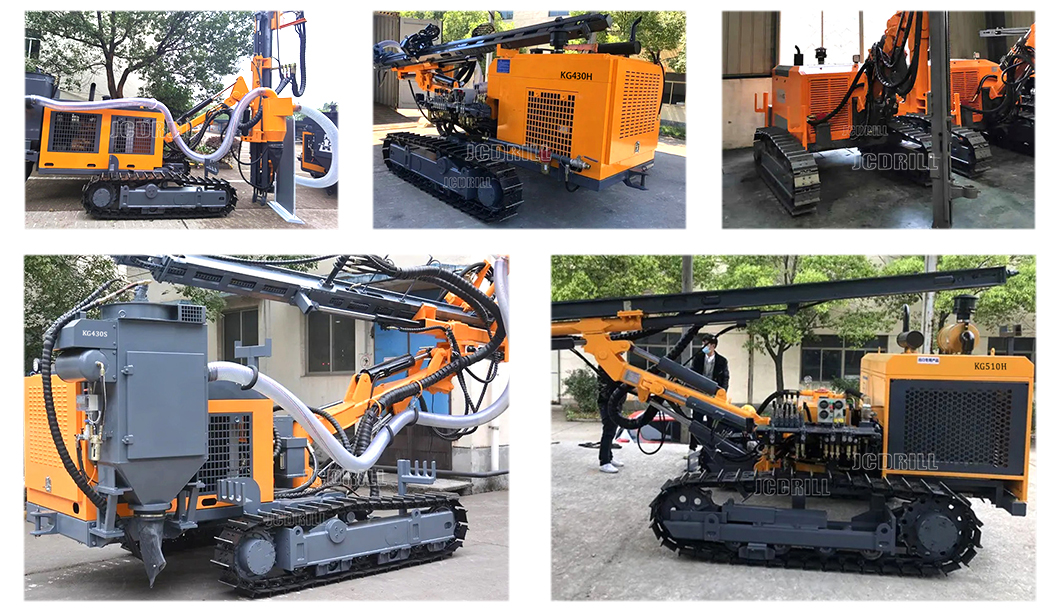

    KG430H 25m Multifunctional DTH Mining Core Drilling Rig Mining Rock Drilling Machine

    KG430H 25m Multifunctional DTH Mining Core Drilling Rig Mining Rock Drilling Machine

    KG430H 25m Multifunctional DTH Mining Core Drilling Rig Mining Rock Drilling Machine

    Application

    The KG430H down the hole drill rig mine drilling rig for open use is an improved device in compliance with national regulations in diesel-engine emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity, the expanded pith and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position.The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity, and the additional ring makes handling and lifting convenient.
    This rock drilling rig is easy to operate and comes with a range of safety features. Its well-designed controls and operating levers ensure smooth and precise operations. The device is also built to last, with robust parts, high-quality materials, and state-of-the-art manufacturing techniques. And with its design, maintenance is effortless, reducing downtime and increasing productivity.

    Overall, the KG430H DTH Mining Drilling Rig is an innovative and superior drilling rig that combines advanced technology, exceptional durability, and reliability. So if you're looking for a powerful and reliable drilling rig that meets the highest standards, look no further than the KG430H.

    Characteristics

    DTH Mining Drilling Rig

    1. Hydraulic driven, smooth transmission, low noise, compacted control panel, easy to operate, labor-saving, safe and reliable.

    2. Crawler chassis mounted, convenient and fast to move and position.

    3. Main arm can move up and down, drilling tower slides on sliding frame, stable, safe and reliable.

    4. Sliding frame can swing back and forth on the main arm seat, achieving drilling in angles, Besides, a meter is equipped on the sliding frame, showing drilling angles conveniently.

    5. Moving of power head is driven by cylinder chain multi speed system with dual chain balance structure.

    6. Multifunctional power head has features of sliding clearance compensation and adjustment compensation and stepless speed adjustment large torque slow speed

    7. Power head has wide speed range, which can meet the requirement of various formation and different drilling process.

    KG430H 25m Multifunctional DTH Mining Core Drilling Rig Mining Rock Drilling Machine

    Specifications KG430/KG430H crawler DTH mine drilling rig for stone quarry
    Model of drill rig
    KG430
    KG430H
    Weight
    5250KG
    5700KG
    Outer dimensions
    6300×2250×2700mm
    6300×2400×2700mm
    Drilling hardness
    f=6-20
    Drilling diameter
    φ90-152mm
    Depth of economical drilling
    25m
    Rotary speed
    0-90rmp
    Rotary torque (Max)
    5000N.m(Max)
    Lifting force
    40KN
    Method of Feed
    Oil cylinder+roller chain
    Feed stroke
    3000mm
    Travelling speed
    0-3.5km/h
    Climbing capacity
    ≤30°
    440Ground clearance
    440mm
    Tilt angle of Beam
    Down:135°,up:50°,total:185°
    Swing angle of boom
    Left:50°,right:50°,total:100°
    Pitch angle of drill boom
    Down:50°,up:25°,total:75°
    Swing angle of drill boom
    Left:45°,right:45°,total:90°
    Compensation length of beam
    900mm
    DTH hammer
    K40
    Drilling rod
    φ76×3m or φ89×3m
    Air consumption
    13-22m³/min
    Maximum height of horizontal hole
    3700mm
    Minimum of horizontal hole
    350mm
