Taper 7 Degree chisel Drill bits Diameter 32mm 34mm 36mm 38mm 40mm 42mm

Application
Chisel bit is also namely wind bit for rock drill (drill) machine. Chisel bit includes a cutter bar, tool rod has a sophisticated, cutting-edge, there are two parts of the main plane on a cutting blade. A kind of concrete, such as drilling, soothe drilling condition of sudden change, make the drilling operation is stable, even when you produce large chip, it won’t reduce the efficiency of drilling bit.

Chisel bit widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc. It is suitable for light-duty rock drill to drill the not very hard rock , and easy to grind.

Suitable for small hole range
Widely used in Dimensional Stone Quarrying Industry
Widely used in Underground Mining Industry

Taper Connection: 4° 6° 7° 11°12°
Bit Diameter: 20-60mm.
Horseshoe chisel bit: 26mm-43mm
Oblique chipways chisel bit: 20mm-42mm
Flat chipway chisel bit: 38mm-80mm
Oblique-flat chipway chisel bit: 36mm-43mm
Packing: ply-wooden case or plastic box or as per your own requests.
Material: 40Cr, 42CrMo.

Characteristics
1. Long life
2. Lower consumption
3. Wide selections of drill bits
4. Delivery quickly
5. Suitable for small hole range
6. Widely used in Dimensional Stone Quarrying Industry
7. Widely used in Underground Mining Industry

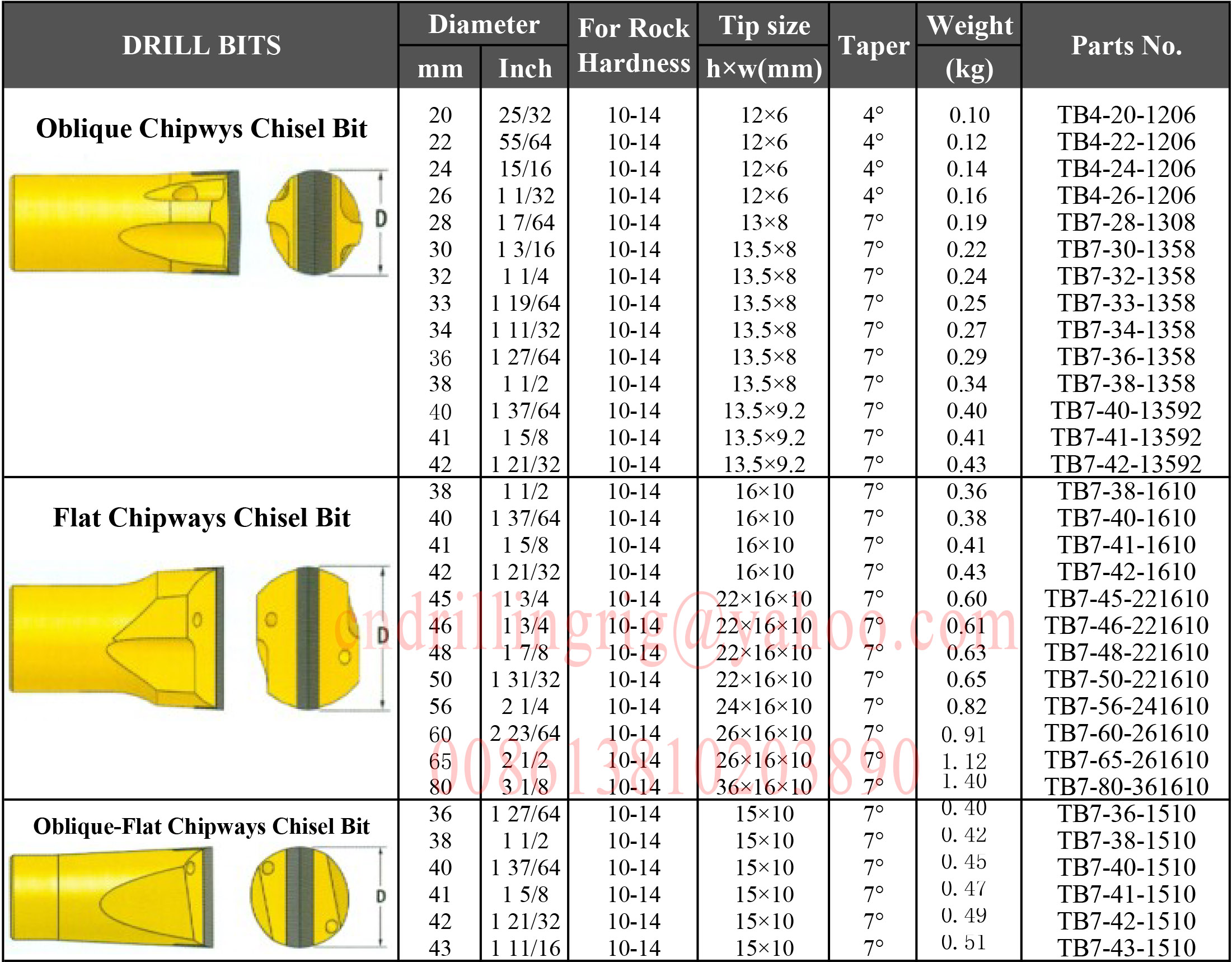

Specification

Packing& Delivery ​

Beijing Jincheng Mining Technology Co., Ltd. (JCDRILL) is located in Beijing, China. For more than 20 years, we have specialized in the research, development, and production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories & drilling services. With our advanced technology, high-quality equipment, rigorous testing processes, and comprehensive service network, we consistently provide professional drilling solutions to our customers. These strengths have helped establish the “JCDRILL” brand as a trusted name in the market. Currently, JCDRILL products account for 50% of the domestic market and are exported to more than 40 countries. In November 2002, we were awarded ISO9001:2000 certification.

Our manufacturing facilities, covering an area of 9,625 square meters, specialize in the production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories. We employ more than 500 staff, including 26 experienced engineers from Ingersoll Rand and the former Xuanhua Mining Machinery Company. With our strong technological expertise and robust market service capabilities, we have developed both an efficient marketing system and an excellent service support system, earning the trust of customers worldwide.

Additionally, we serve as an authorized agent for mobile double-screw air compressors from Atlas Copco, Sullair, and Liutech. This allows us to offer drilling rig users high-quality, professional air compressor solutions along with reliable after-sales services.

At JCDRILL, we are committed to our strategic vision: “Survival by Quality, Development by Credit.” We strive to provide users with high-quality drilling solutions. Our after-sales service system follows a strict control framework based on ISO-9000 standards. This system ensures that technical data, problem-solving solutions, and preventive measures are provided for every maintenance project. All spare parts are sourced from new OEM products and come with installation instructions, packing lists, manufacturer documentation, qualification certificates, and warranty certificates.

We uphold the principle of “One Equipment, One Case, Endless Service”—our after-sales support begins from the moment an order is confirmed and lasts throughout the equipment’s entire operational life.
