Gasoline Impact ock drilling machine/ petrol Rock drilling tool/Hand hammer rock drill YN30

Application

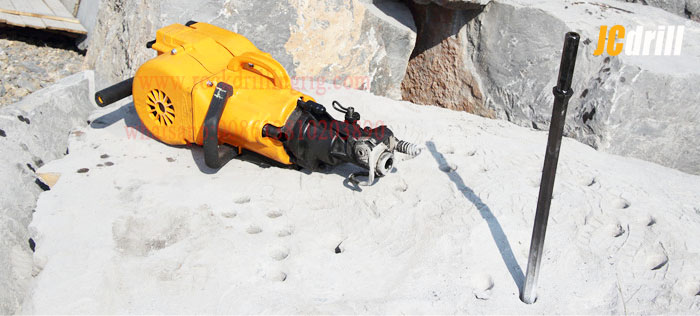

YN30A hand hold internal-combustion rock drill is a hand-rock drilling tool which integrates the small gasoline-engine,compressor and rock drill. It can blow off the rock powder in the blasthole by the compressing air generated from itself. Just30kg weight for the main engine .

Easy to carry about.Applicable for the areas of high mountains and of without power and wind pressure equipment,especially for those temporary projects with frequent movement. Working on the rocks,available for vertical down drilling,horizontal drilling and up drilling with the angle of less than 45°.The max. vertical down drilling depth can be 6m.

YN30 Applicable for rock drilling.if replace a few of the parts,it can also be used as a breaker and a rammer for various work of breaking,shovelling, excavating,splitting and ramming,etc.2. Wide applicability. Regardless of the high mountains,flat grounds, extremely the hot area with the temperature of + 40℃ and bitter cold area of -40℃,it can work in good condition.

1. Applicable for rock drilling. If replace a few of the parts.

2. It can also be used as a breaker and a rammer for various work of breaking, shovelling, excavating, splitting and ramming.

3. Wide applicability. Regardless of the high mountains, flat grounds, extremely the hot area with the temperature of +40℃and bitter cold area of -40℃, it can work in good condition.

Characteristics

1. YN30A (YN30E) handhold internal-combustion rock drill is a hand-rock drilling tool which integrates the small gasoline engine compressor and rock drill.

2. It can blow off the rock powder in the blasting hole by the com-pressing air generated from itself

Just 30kg weight for the main engine

3. Easy to carry about

4. Applicable for the areas of high mountaina and of without power and wind pressure equipment, especially for those temporary projects with frequent movement

5. Working on the rocks, available for vertical down drilling, horizontal drilling and up drilling with the angle of less than 45°the max. yertical down drilling depth can be 8m

Engine:
The engine is a hand operated,single cylinder and two stroke petrol engine with air cooling,reflux airconversion,no contact ignition,and no floating-type carburetor.It is composed of control parts,starter parts,oil tank parts,flywheel parts,crankshaft,connecting rod,crankshaft case parts,magneto parts,and piston parts and cylinder parts.

Air Compressor:
The engine piston and hammer piston are mounted separately in the upper and lower place of the cylinder.These two pistons move up and down synchronously.The hammer piston and the bigger bore of the cylinder forma compression chamber,which together with air inlet and outlet valves and ventilator valves,form the air compressor.It is composed of hammer piston parts and cylinder parts.

Rock drill:
It is composed of hammer piston parts,rotation mechanism parts,drill shank housing parts.

Specification

Packing& Delivery

Service
