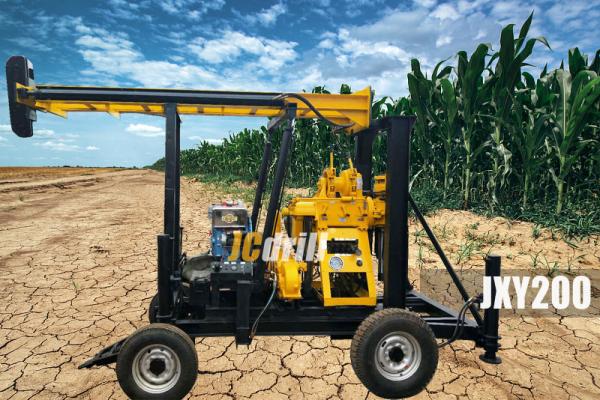

JXY200 Trailer Mounted Water Well Drilling Rig, 200m drilling
capacity
Application
JXY200 water well drilling machine adopts the latest design with trailer mounted mobile base,
mechanical transmission and hydraulic operation system. It is
equipped with three-wing bit, alloy bit and diamond bit for different geological formations, such as soil, sand, gravel, granite, hard rock, etc.
Characteristics
1. Exploration for foundation engineering;
2. Construction;
3. Water well or geotechnical survey drilling for caliber within diameter 600mm;
4. Holes for inspection, rescue, project quality test as well as
geological exploration and coal field prospecting;
1. Power Supply
It can be driven by either electric motor or diesel engine.
2. Improved Structure
Gearbox, vertical shaft box, mud pump, diesel engine, etc, all
integrated on one base.
Not only simplify the connection parts, guarantee the accuracy,
reduce weight, save the lubricating oil, but also conducive to
dustproof and lubrication, improve work efficiency and prolong the
service life.
3. Tractor or Trailer Mounted Mobile Base
A. Hydraulic mobile base makes machine move backward 400mm, hydraulic
control, efficient, convenient to operate;
B. It is configured with four wheels, can be mounted on tractor or trailer. Easy to work in mountains and rugged places.
4. Hydraulic drill tower, hydraulic legs
No need to erect drill tower manually, very convenient to use.
5. Three-wing Bit, Alloy Bit, Diamond Bit
Different bits to adapt to different geological formations, such as
soil, sand, gravel, hard rock, etc. Very effective in diamond
drilling.
6. Direct Use
The complete set includes drilling rig, drilling tower, mud pump,
etc. To ensure you can use directly after receiving our machine.
Specification
| 1.Overall parameters |
| Drilling depth | 200m |
| Maximum open hole caliber | 400mm |
| End hole caliber | 75mm |
| Diameter of drill rod | 50mm |
| Drilling angle | 90~75 |
| Weight(not include power) | 760kg |
| Dimension | 2750*950*1600mm |
| 2. Vertical shaft |
| Rotating speed | 71,142, ,310,,620r/min |
| Feeding stroke | 450mm |
| 3.Hoist |
| Max. single line hoisting capacity | 2400Kg |
| Diameter of wire rope | 13mm |
| Volume of winding drum | 35m |
| Hug floodgate caliber | 230mm |
| Hug floodgate belt width | 70mm |
| 4.Mud pump |
| Type | Horizontal single urn twin-action |
| Rate of flow | 180L/min |
| MAX. pressure | 1.5MPa |
| Working pressure | 0.7MPa |
| Diameter of water inlet tube | 50mm |
| Diameter of water outlet tube | 45mm |
| 5.Power |
| Diesel engine | 22HP, 2200r/min |
| Electrical motor | 15KW, 1460r/min |
Service
In our after sales service system, We establish perfect control
system strictly according to ISO-9000 series, in this system,
technology date and problem solve solution and preventive measures
will be provided in any maintain project, all the spare parts will
be used in new OEM products with installation instructions, packing
list, manufacturer's instruction, qualification and Warranty
certificate.
We provide "one equipment & one case, endless service, namely the
after sales service begin from the order confirmation, last for the
working life of the equipment.
