    300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging Equipment

    Ask Lasest Price
    Brand Name : JCDRILL
    Model Number : CSD300
    Certification : ISO,CE
    Price : Negotation
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 2000set/year
    Delivery Time : 1week
    • Product Details
    • Company Profile

    300m Water Borehole Drilling Machine , Truck Mounted Water Well Digging Equipment

    300m Drilling Depth Borehole Well Water Drilling Equipment , Truck Mounted Well Digging Machine JKCS300


    Application

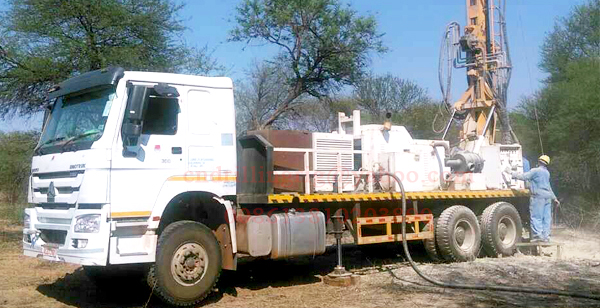

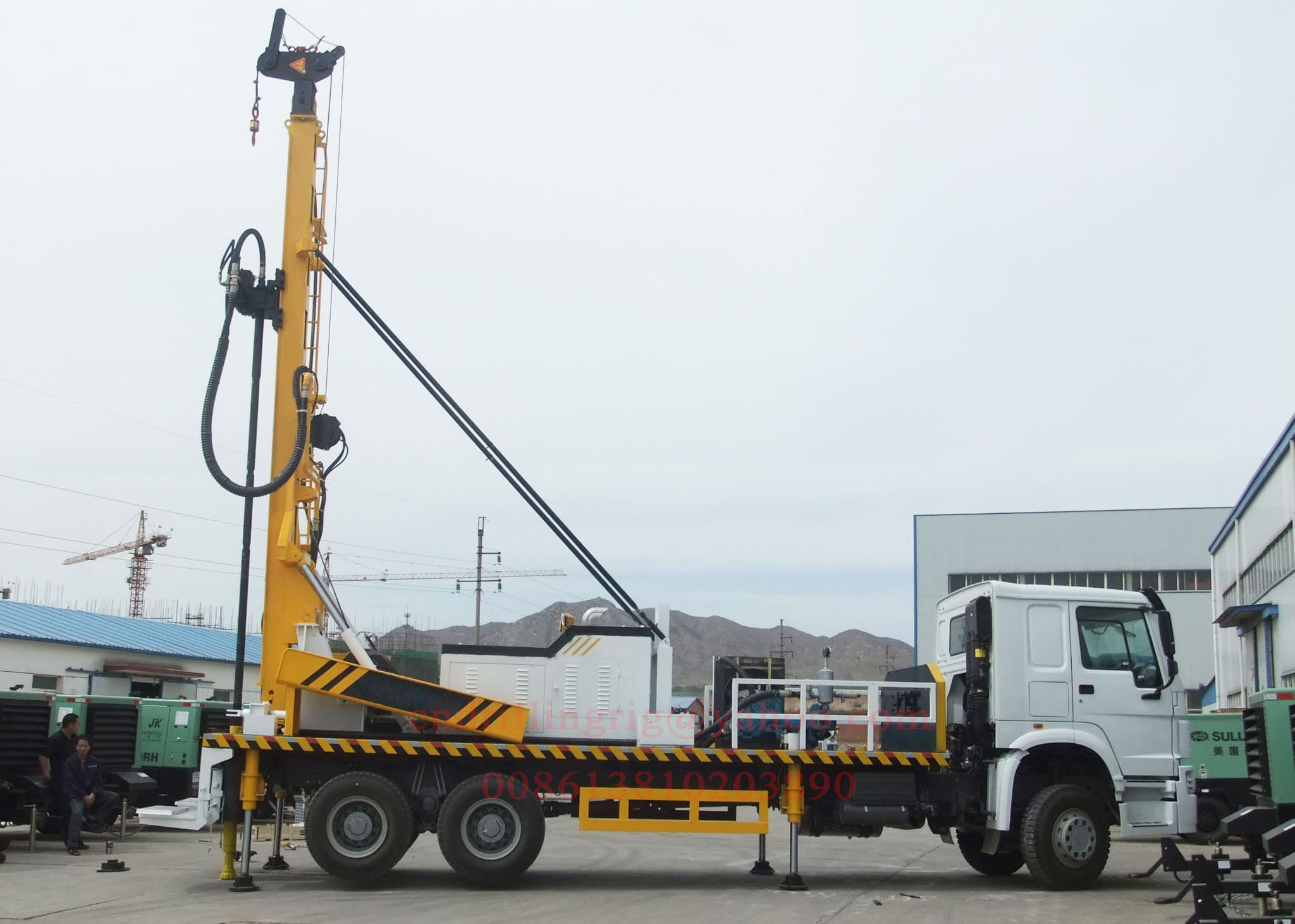

    CSD300 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
    CSD300 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

    Characteristics

    1. The drilling rig can use air DTH Hammer drilling and mud drilling.
    2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
    3. The truck chassis adopts the 8X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
    4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW450/2A mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
    5. The power of drilling rig comes from a Cummins engine,112kw Cummins engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
    6. The rotary head,have two gear,rotation speed is 0-80 and160rpm stepless adjustment and the rotary torque is 4800-9600Nm.
    7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
    8. It can set up a generator which is convenient to welding or illuminate for work at night.
    9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
    10. Competitive in price, low cost of maintain.
    Specification
    NO.SpecificationUnitCode
    1Geology drilled All kinds
    2Drilling Type DTH & Mud Rotary
    3Drill system and operation Hydraulic
    4Hole DiametermmΦ105—Φ350
    5Hole Depthm300
    6Rotation TorqueNm4500 1st Gear
    8000 2nd Ger
    7Rotation Speedrpm0-80 1st Gear
    0-160 2nd Ger
    8Drill pipe diametermm89,102,114
    9Drill pipe lengthmm2500/4000
    10Axial pressureT85KN
    11Max. Lifting forceN4000
    12Max. Feed SpeedM/min18
    13Max. Lifting Heightm8
    14Feed Strokemm3400
    Winch
    15Max. Lifting forceT20
    16Lifting force of Main winch(Optional)T4
    17Lifting force of hoistT1.5
    18Length of steel wire rope(tool winch)m100
    19Lifting height of tool winchm8
    Engine
    20Diesel Engine typeCUMMINS
    21Rated Horse powerKw112
    22Electrical SystemV24
    Compressor required
    23Compressor TypeRotary Screw/Movable
    24Pressure RequiredMpa1.05—4.5
    25Air consumptionm³/min16—60
    Truck
    26Manufacturer SINOTRUCK HOWO
    27Model ZZ1257M5841W
    28Engine WD615.62
    29Rated Horse powerHp/kw270/198
    30Discharge Standard EU-3
    31Drive type 6*4
    32Max.SpeedKm/h102.9
    33Steering wheel left/right(Optional)
    Mud Pump
    34Type Hydrulic
    35Model BW450
    36Strokemm110
    37DisplacementL/Min450
    38Discharge pressure (Mpa)Mpa2-3
    39Suction tube diametermm89
    40Discharge pipe diametermm51
    41Liner Diametermm80
    Hydraulic Welder(Optional)
    42Mnufacturer Dynaset
    43Welding currentA60-250
    44Hydraulic Min.oilflowL/min42
    45Nom/Max PressureBar190/210
    46VoltageV110/220VDC
    47PowerKw1or2
    48L*W*Hmm390*190*230
    49Foam pump Optional
    Dimension
    50Net WeightT22
    51Shipping Lengthmm10600
    52Shipping Widthmm2400
    53Shipping Heightmm3050
    54Working size(L*W*H)mm11000*2480*7147
    Packing& Delivery

    Service

    In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


    We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
