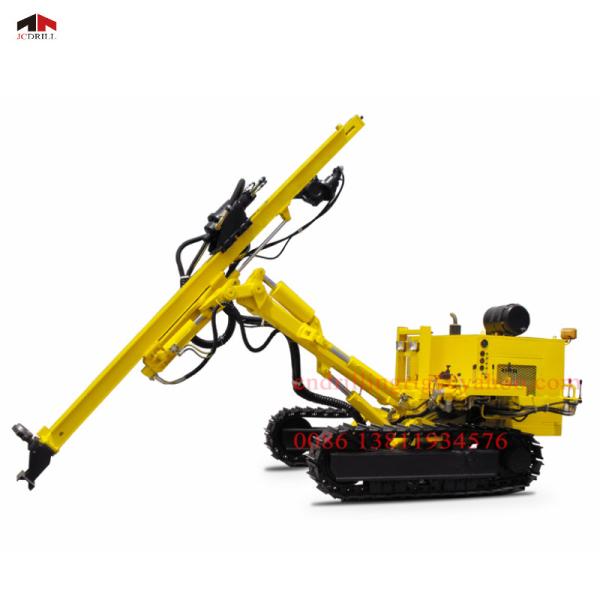

Crawler Hydraulic DTH Rock Blasting Wagon Drill Machine , Borehole
Drilling Equipment CM358A
Characteristics
1. The Rugged track was driven by hydraulic motor with high
traveling ability.
2. The feed and rotary head were driven by hydraulic motor,
therefore, the air and oil consumption and total drilling cost are
lower.
3. The hydraulic feed and rotary head put out the biggest feeding
force and largest rotary torque, which makes it more suitable for
operation in complex worksites.
4. The compressor equipped for the rig is smaller and cheaper than
that one the air rig equipped, along with the best
price-performance ratio than air rig.
5. The Hydraulic track oscillation makes it more suitable to drill
in any rough terrain.
6. The carriage with rollers provides for minimal wear to the drill
guide.
7. The Hydraulic auxiliary functions are easy and efficient for
guide extension, boom swing, boom lift, guide tilt and guide dump.
8. The diesel engine and main hydraulic parts adopt imported
products or famous domestic brand.
9. The special compensation device makes a full protection of drill
rod threads.
Application
CM358A hydraulic crawler down-hole drill rig is a multi-functional
Rock blsting drilling rig driven by internal combustion engine, the
hydraulic rock drilling rig power was provided by hydraulic system
except for impacting and the hole cleaning wind. CM358A crawler
drilling rig is convenient and efficient to operate. This mobile
drilling rig is the best replacement for traditional pneumatic
drills in most operation. The DTH Drilling rig is compact in
structure, simple in operation, light in total weight. CM358A
hydraulic crawler DTH drilling rig is widely used for blast-hole
drilling in the mines and quarries.The wagon drill is also used for
anchor in road, railway, power station, civil engineering and
building etc.
Specifiction
| 1 | Rock Hardness | F=6-20 |
| 2 | Hole Diameter | mm | 90-165 |
| 3 | Hole Depth | m | 40 |
| 4 | Drilling Rod Diameter | mm | 60,76,89 |
| 5 | Rotation Torque | Nm | 4500 |
| 6 | Rotation Speed | rpm | 0-100 |
| 7 | Max. Feed force | KN | 30 |
| 8 | Max. Lifting force | KN | 30 |
| 9 | Max. Feed Speed | M/min | 15 |
| 10 | Max. Lifting Speed | M/min | 15 |
| 11 | Max Swing of Boom | ° | 45° left / 45° right |
| 12 | Max Dump of Boom | ° | up60 down20 |
| 13 | Max Swing of Guide | ° | 30(L) / 91(R) |
| 14 | Max Dump of Guide | ° | 180 |
| 25 | Guide Extension | mm | 1200 |
| 15 | Feed Stroke | m | 3 |
| 16 | Manufacturer | | CUMMINS |
| 17 | Electrical System | 24 | Volt |
| 18 | Compressor Pressure Required | M³/min | Φ≤115 11.3m2/min(1.4 Mpa) |
| Φ≤140 13m2/min(1.4 Mpa) |
| Φ≤165 17m2/min(1.4 Mpa) |
| Φ≤165 21m2/min(2.4 Mpa) |
| 19 | Max. Travel Speed | Km/h | 2 |
| 20 | Gradeability | ° | 24 |
| 21 | Net Weight | kg | 6100 |
| 22 | Shipping Length | mm | 6900 |
| 23 | Shipping Width | mm | 2200 |
| 24 | Shipping Height | mm | 2200 |
