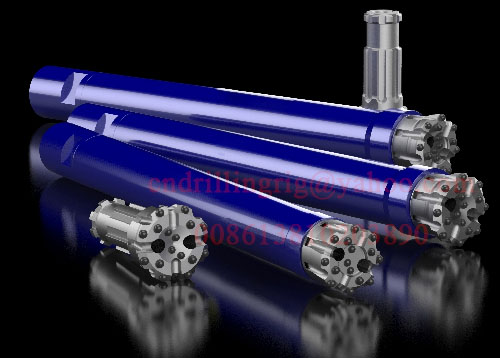

4inch RC drilling hammer,Reverse Circulation Drilling Hammer Down The Hole Drilling Tools

Application

With professional manufacturing experience in DTH hammer production, our factory can supply you with high pressure and medium to low pressure DTH hammers. It strictly matches with API standard and other Chinese industry standards.It is durable for being produced with advanced craftwork and good material.

1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.

2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.

5. Interchangeable with DTH bit and drill pipe

Characteristics

Hammer shank available:

1. BR shank series: BR1, BR2, BR3;
2. Cop shank series: Cop32, Cop34, Cop44, Cop54, Cop64, Cop84;
3. DHD shank series: DHD3.5, DHD340,DHD350, DHD360, DHD380;
4. SD shank series: SD4, SD5, SD6, SD8, SD10, SD12, SD15, SD18;
5. Mission shank series: Mission40, Mission50, Mission 60, Mission 80;
6. QL shank series: QL30, QL40, QL50, QL60, QL80;
7. NUMA shank series: NUMA120, NUMA125, NUMA180, NUMA240;
Other hammer shanks can be available according to customer's drawing or samples.

Specification

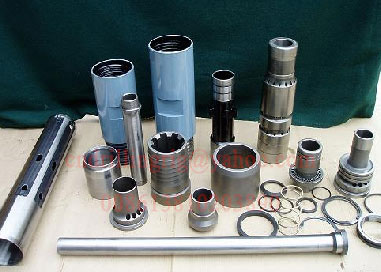

JRC4 RC Hammer
		Item Description		Weight	Parts No.
		1.Circlip of top sub		0.02	JRC4-01
		2.O-ring of adaptor screen		0.02	JRC4-02
		3.Adaptor screen		1.06	JRC4-03
		4.O-Ring of sample tube		0.02	JRC4-04
		5.Top Sub		7.79	JRC4-05
		6.Plunger		0.51	JRC4-06
		7.Y-ring of plunger		0.02	JRC4-07
		8.Spring Distributor nozzle		0.06	JRC4-08
		9.Sample Tube Upper Top sub		0.74	JRC4-09
		10.O-Ring of sample tube		0.02	JRC4-10
		11.O-Ring of sample tube		0.02	JRC4-11
		12.Sample tube		2.38	JRC4-12
		13.Compression buffer		0.17	JRC4-13
		14.Air distributor		1.75	JRC4-14
		15.O-ring of air distributor		0.02	JRC4-15
		16.Inner cylinder		2.45	JRC4-16
		17.Piston		10.45	JRC4-17
		18.Piston case		17.95	JRC4-18
		19.Bush drive sub		1.77	JRC4-19
		20.Bit retaining ring		0.29	JRC4-20
		21.O-ring of bit retaining ring		0.02	JRC4-21
		22.Shroud		1.05	JRC4-22
		23.Drive sub		3.13	JRC4-23
		23.RC drill bit		11.70	JRC4-24
Technical Data
Length (Less bit)	Weight (Less bit)	External Diameter	Bit Shank	Hole Range	Connection Thread
1252mm	52.0kg	107mm	JRC4	111-127mm	3.5/4''Remet 4''Metzke
Working Pressure	Impact rate at 0.5 Mpa	Recommended Rotation Speed		Air Consumption
1.5-3.5Mpa	30HZ	25-40r/min		1.7Mpa	2.4Mpa	3.0Mpa
				8m3/min	12m3/min	16m3/min

Packing& Delivery ​

Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Beijing Jincheng Mining Technology Co., Ltd. (JCDRILL) is located in Beijing, China. For more than 20 years, we have specialized in the research, development, and production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories & drilling services. With our advanced technology, high-quality equipment, rigorous testing processes, and comprehensive service network, we consistently provide professional drilling solutions to our customers. These strengths have helped establish the “JCDRILL” brand as a trusted name in the market. Currently, JCDRILL products account for 50% of the domestic market and are exported to more than 40 countries. In November 2002, we were awarded ISO9001:2000 certification.

Our manufacturing facilities, covering an area of 9,625 square meters, specialize in the production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories. We employ more than 500 staff, including 26 experienced engineers from Ingersoll Rand and the former Xuanhua Mining Machinery Company. With our strong technological expertise and robust market service capabilities, we have developed both an efficient marketing system and an excellent service support system, earning the trust of customers worldwide.

Additionally, we serve as an authorized agent for mobile double-screw air compressors from Atlas Copco, Sullair, and Liutech. This allows us to offer drilling rig users high-quality, professional air compressor solutions along with reliable after-sales services.

At JCDRILL, we are committed to our strategic vision: “Survival by Quality, Development by Credit.” We strive to provide users with high-quality drilling solutions. Our after-sales service system follows a strict control framework based on ISO-9000 standards. This system ensures that technical data, problem-solving solutions, and preventive measures are provided for every maintenance project. All spare parts are sourced from new OEM products and come with installation instructions, packing lists, manufacturer documentation, qualification certificates, and warranty certificates.

We uphold the principle of “One Equipment, One Case, Endless Service”—our after-sales support begins from the moment an order is confirmed and lasts throughout the equipment’s entire operational life.
